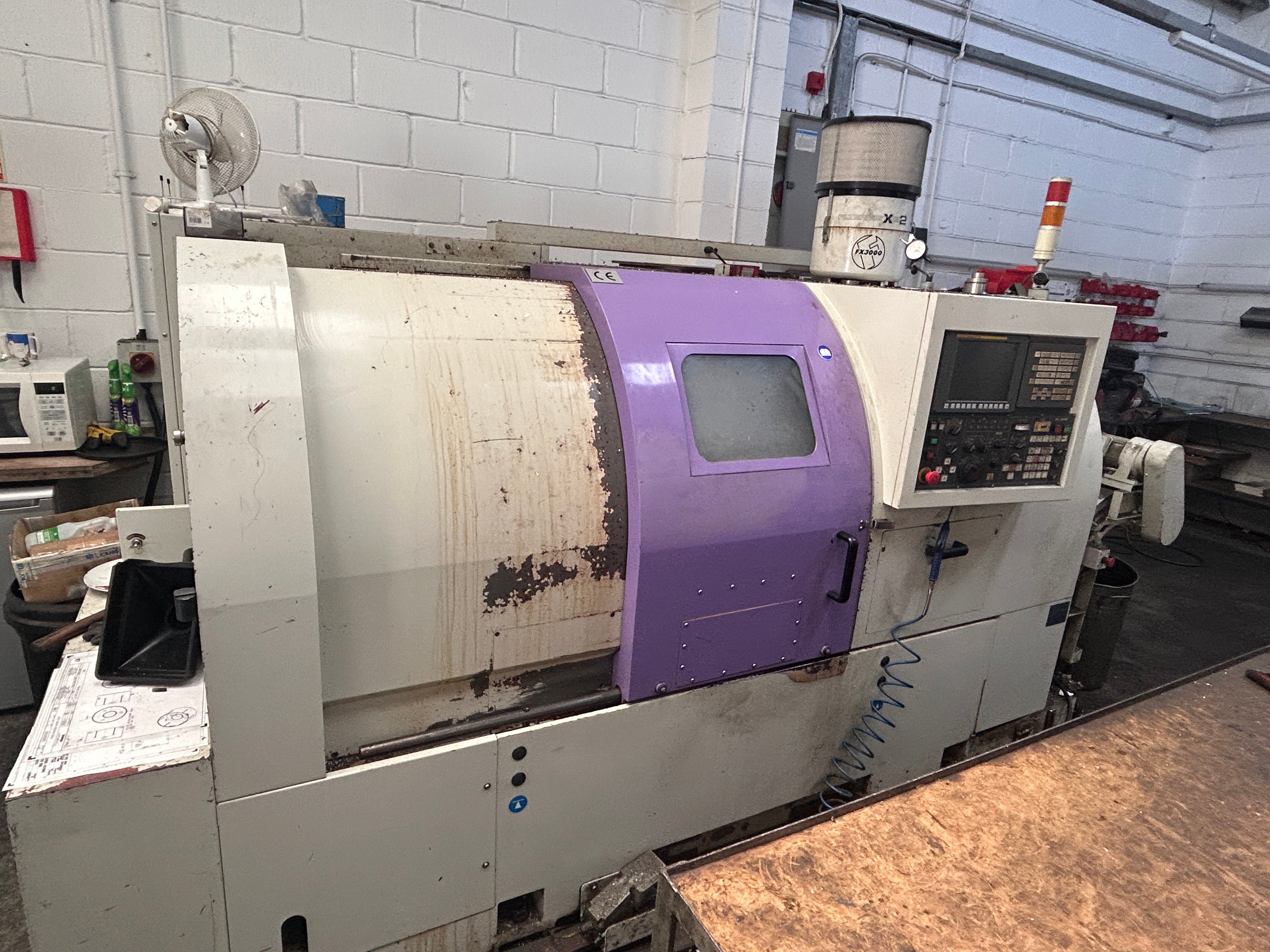

2007 Ecoca SJ30 HT CNC Lathe

Ecoca SJ-30HT CNC Lathe – FANUC Oi-TC, 3-Jaw Chuck, Tailstock, 2007

The Ecoca SJ-30HT is a precision-built CNC turning centre, featuring a robust FANUC Oi-TC control, a high-torque 25–30 HP spindle, and a 12-station hydraulic turret. Built for high-efficiency turning, it is ideal for production environments that demand repeatability, rigidity, and smooth operation.

With generous swing capacity and a large spindle bore, this machine is suited to both bar work and chucking applications.

Machine Specifications:

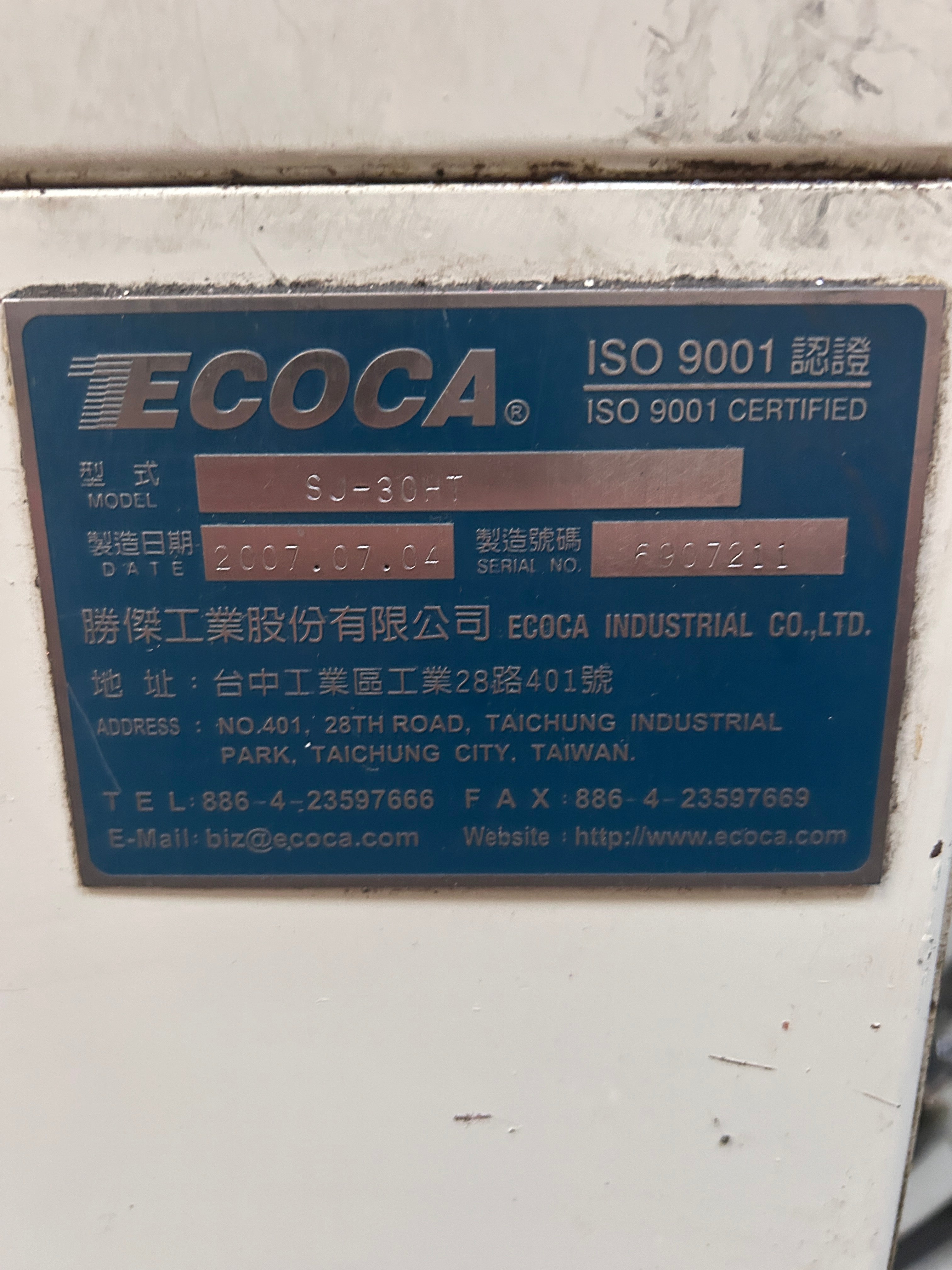

Year: 2007

Control System: FANUC Oi-TC

Swing Over Bed: 580 mm

Swing Over Cross Slide: 434 mm

Max Turning Diameter: 280 mm

Max Turning Length (Between Centres): 460 mm

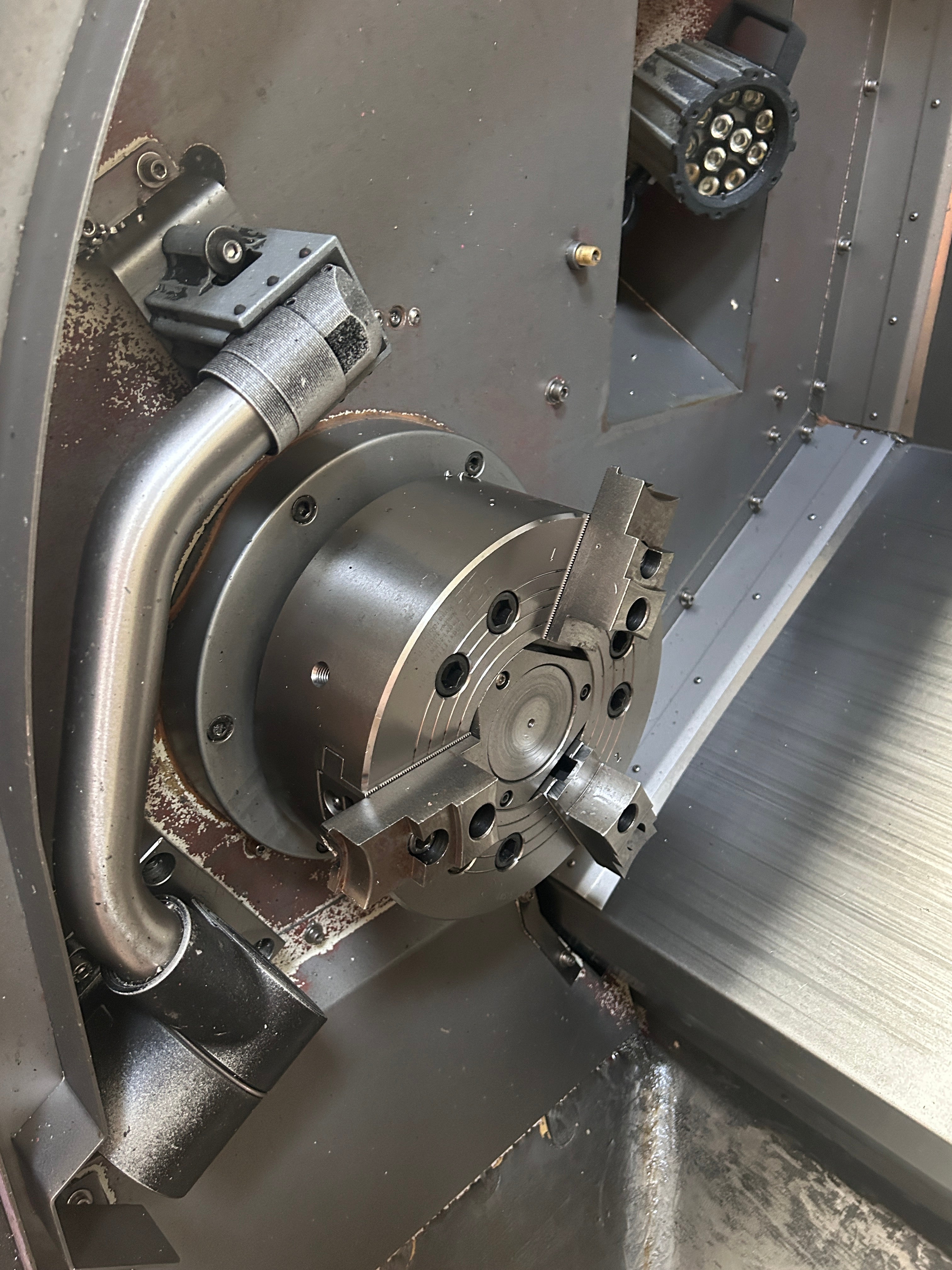

Chuck Size: 254 mm (10″) – 3-Jaw

Bar Capacity / Bore: 90 mm (75 mm for SJ-30G variant)

Spindle Speed: 3,500–4,200 RPM

Spindle Motor Power: 25–30 HP (18–22 kW)

Spindle Nose: A2-8

Spindle Bore (Through Hole): 90 mm

X-Axis Travel: 190 mm

Z-Axis Travel: 520 mm

Rapid Traverse: X = 15 m/min, Z = 20 m/min

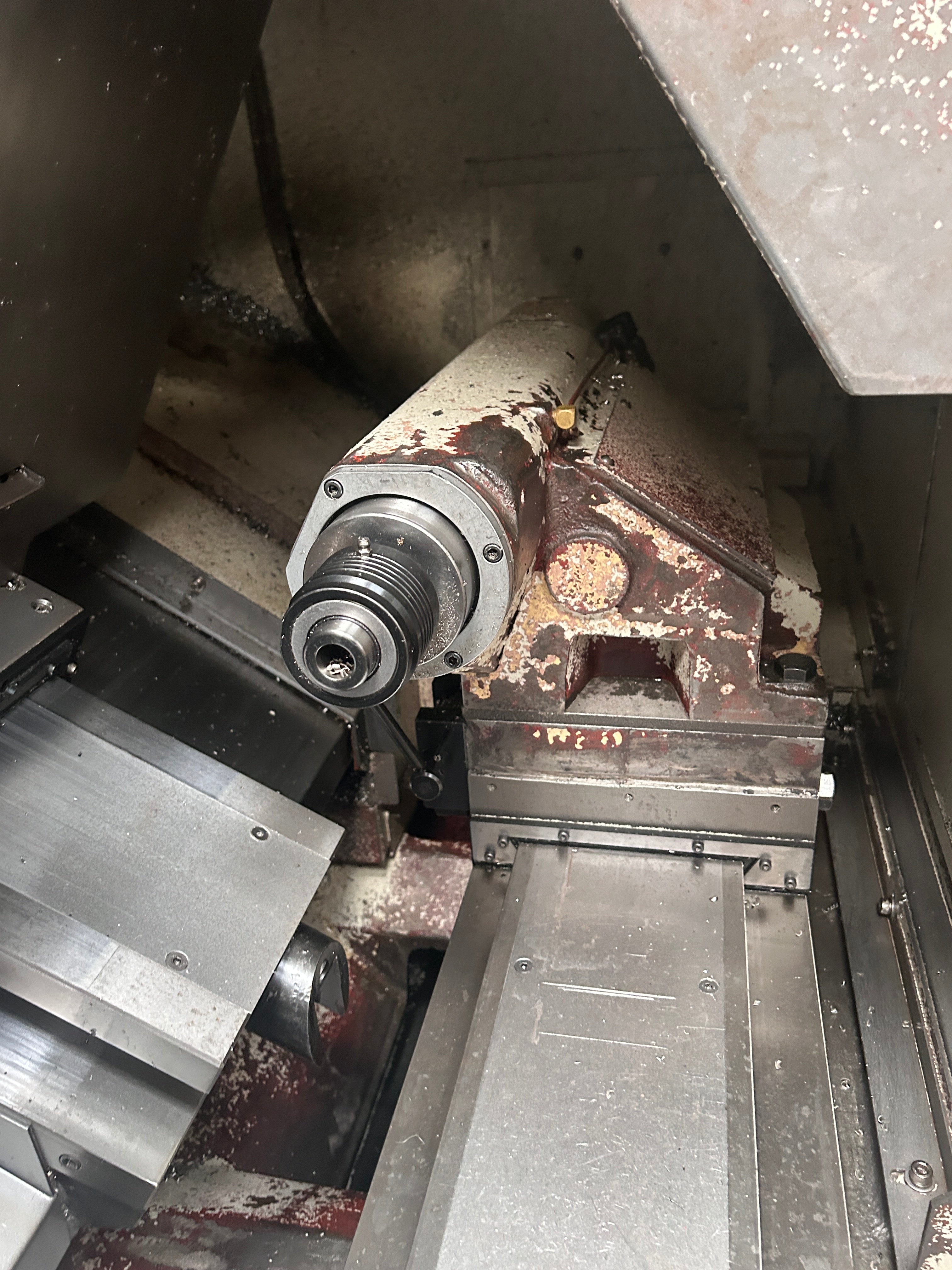

Tooling & Tailstock:

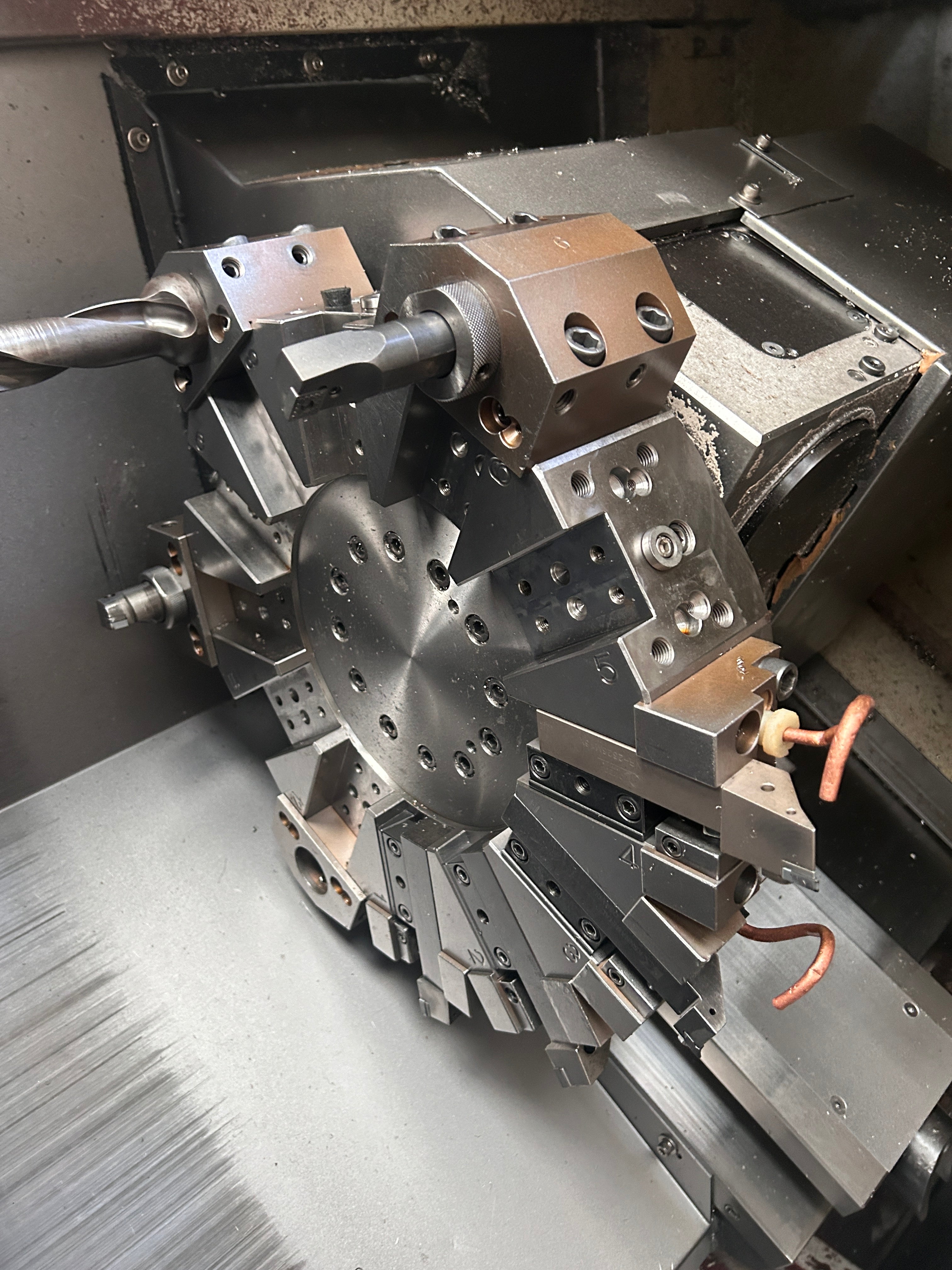

Turret: 12-station, hydraulic, Curvic coupling

Diameter: 90 mm

Taper: MT-5

Travel: 120 mm

Features:

Heavy-duty construction with box ways

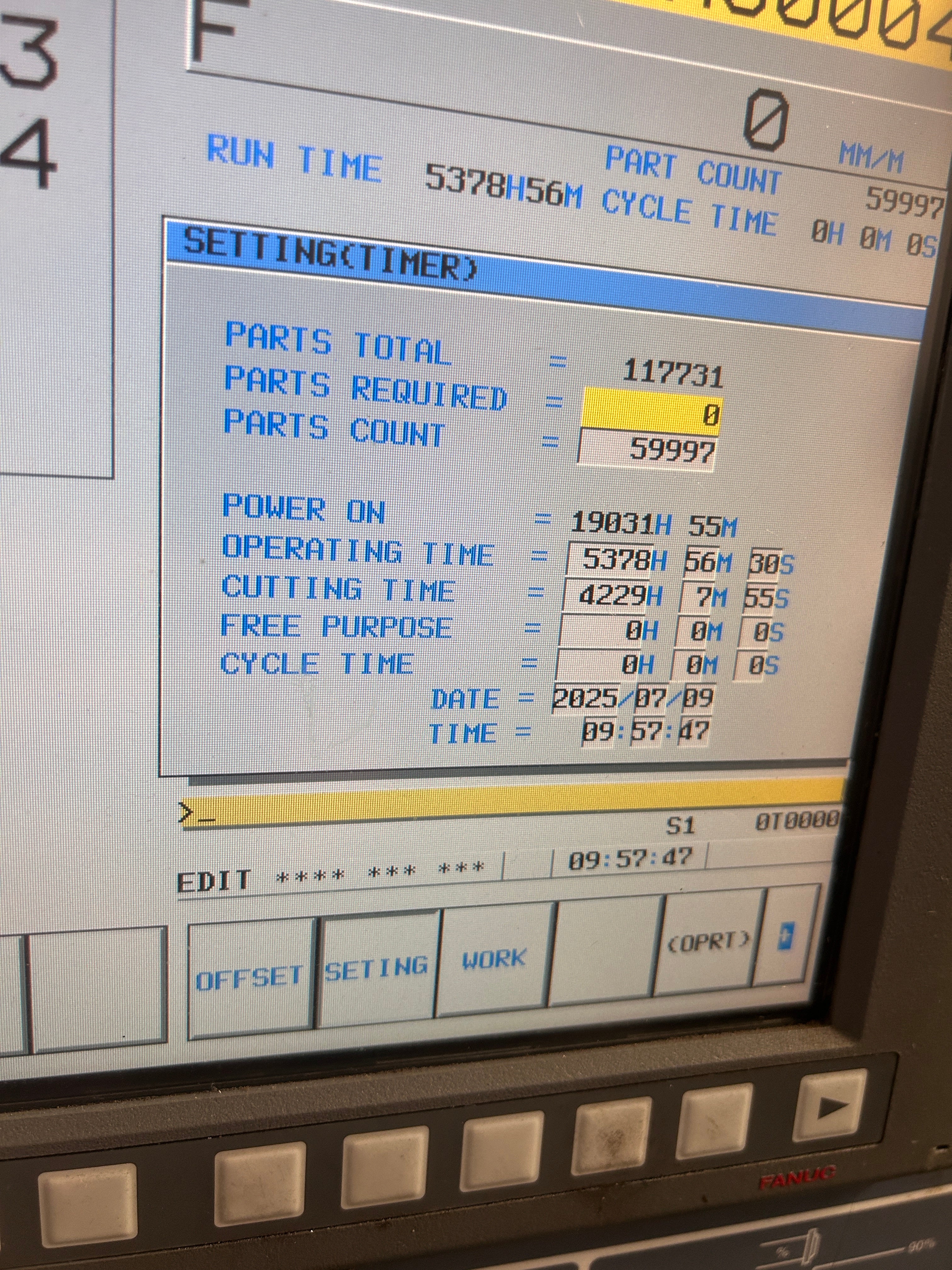

FANUC Oi-TC – reliable, user-friendly CNC interface

Through-spindle coolant ready

Large 147L coolant tank

Hydraulic turret with Curvic coupling for precision indexing

Machine Dimensions & Weight:

Footprint: 4,460 × 1,920 mm

Weight: 5,000 kg

Electrical Supply: 40 kVA
