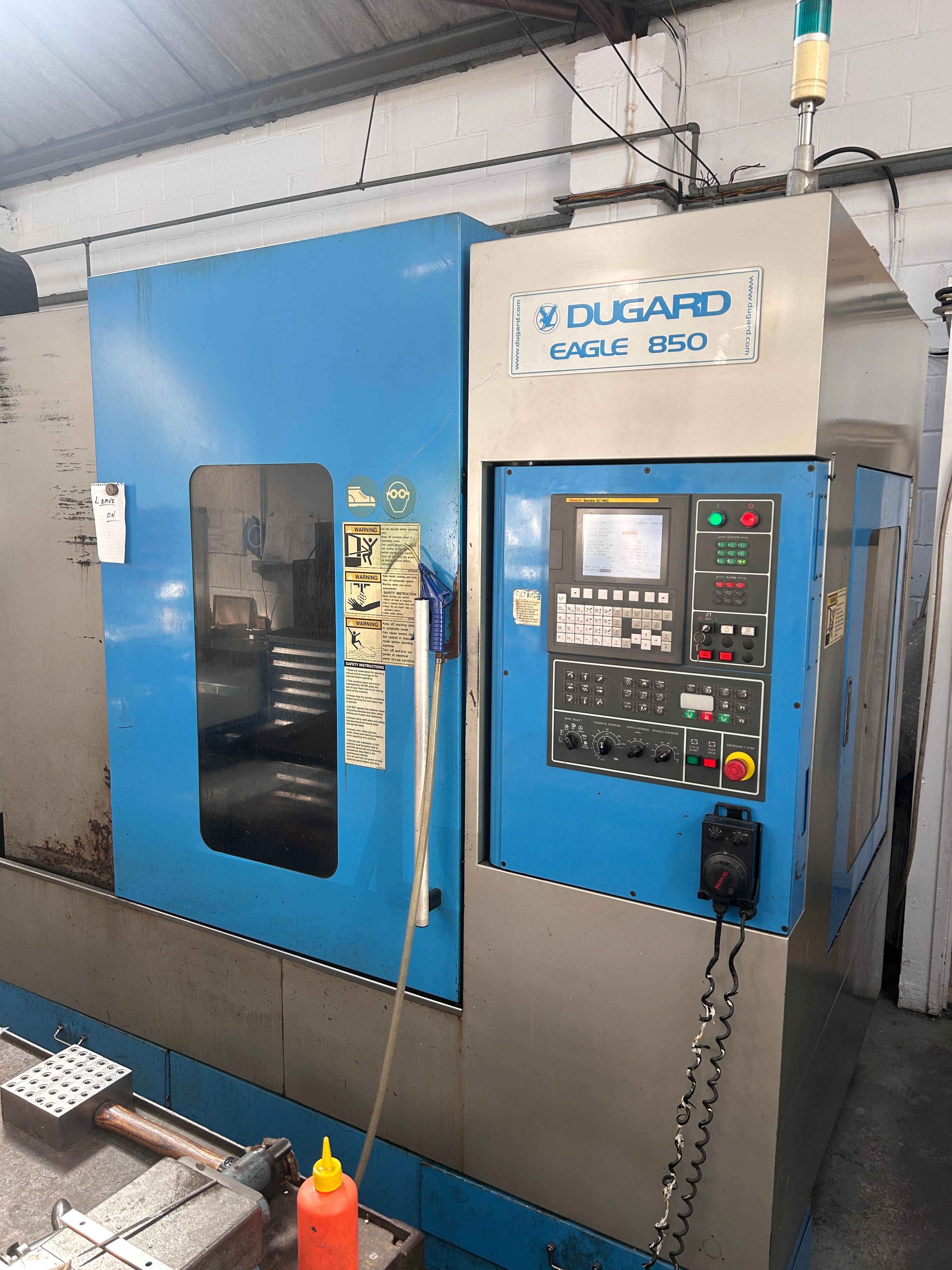

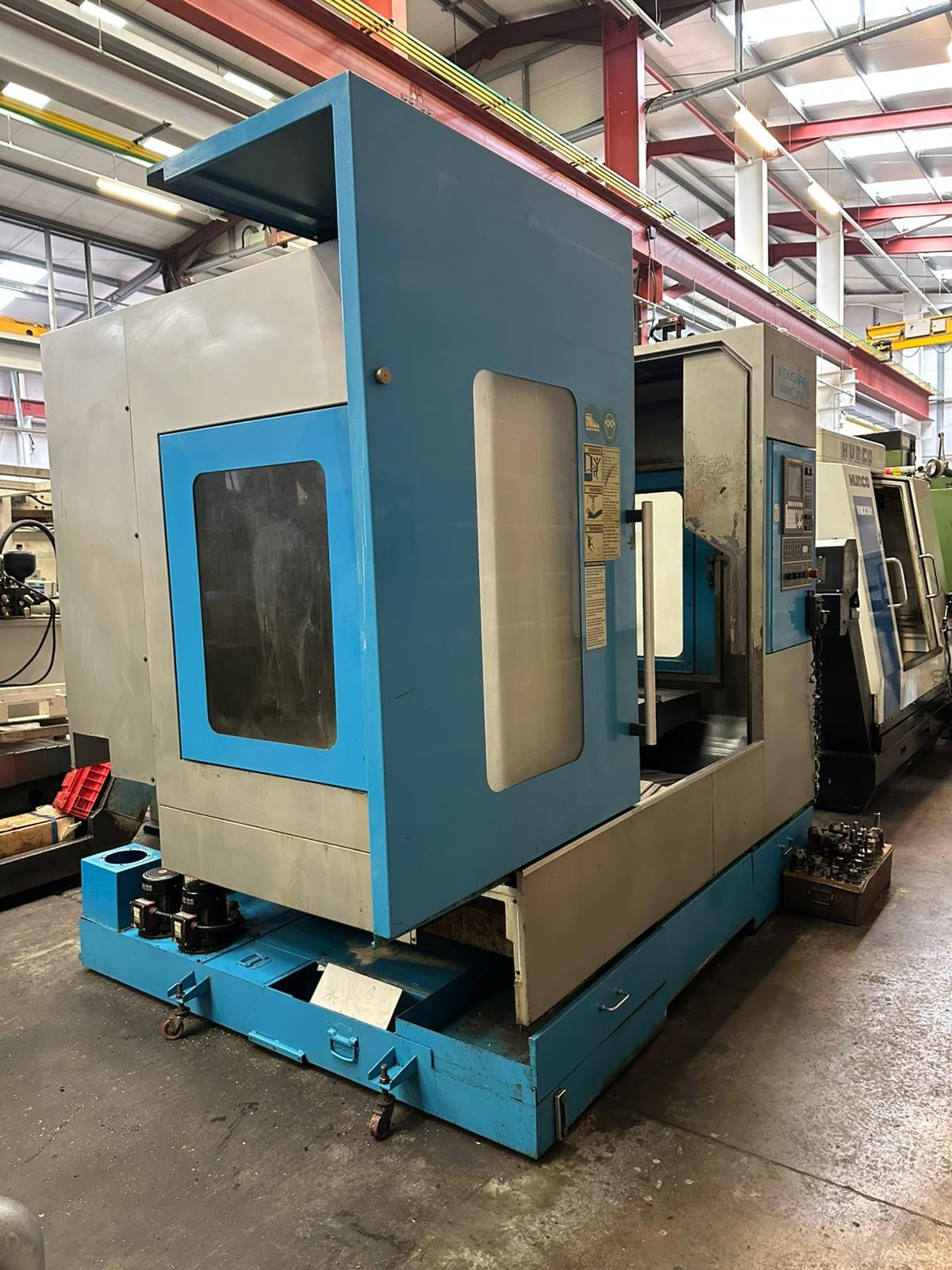

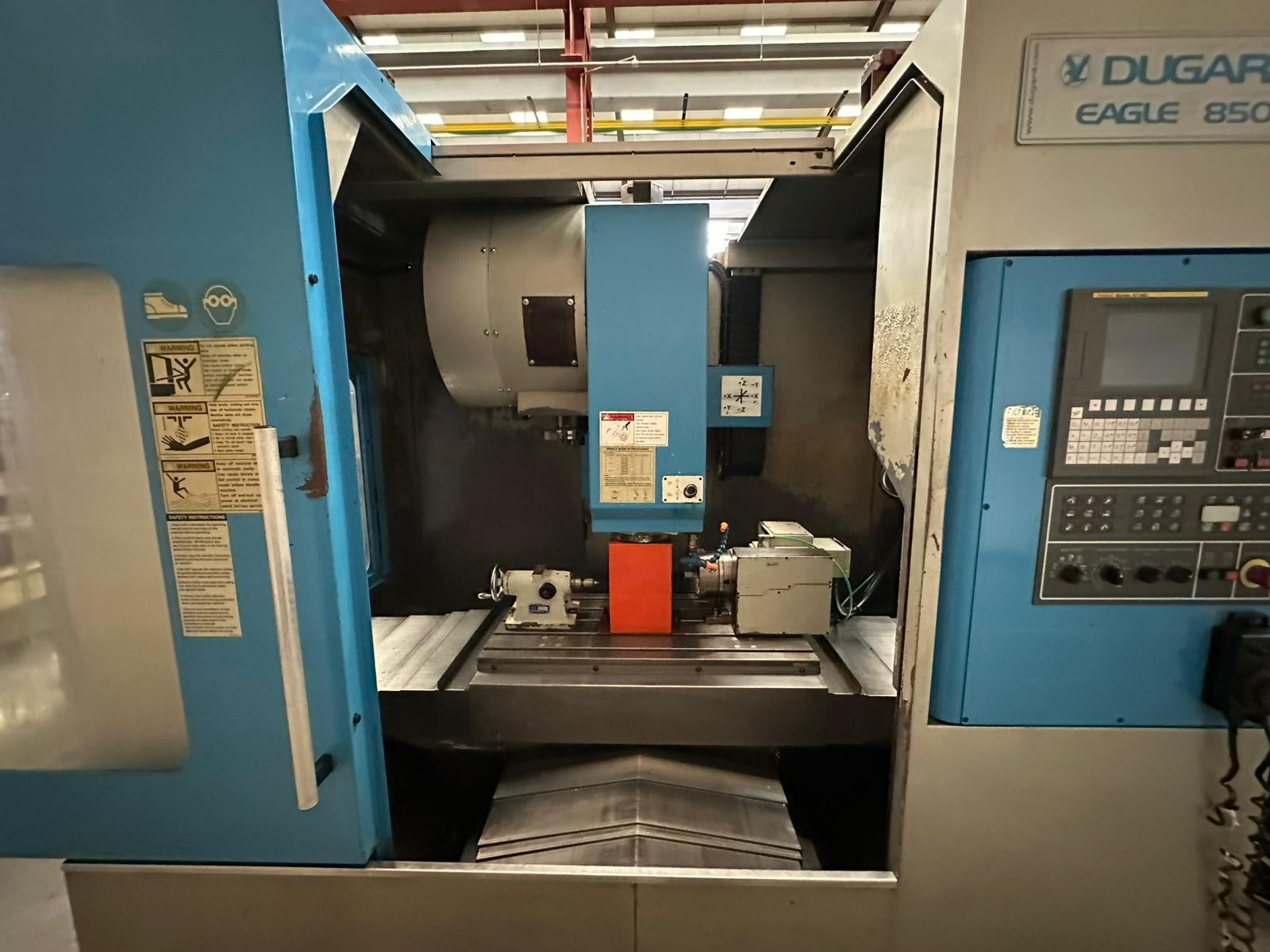

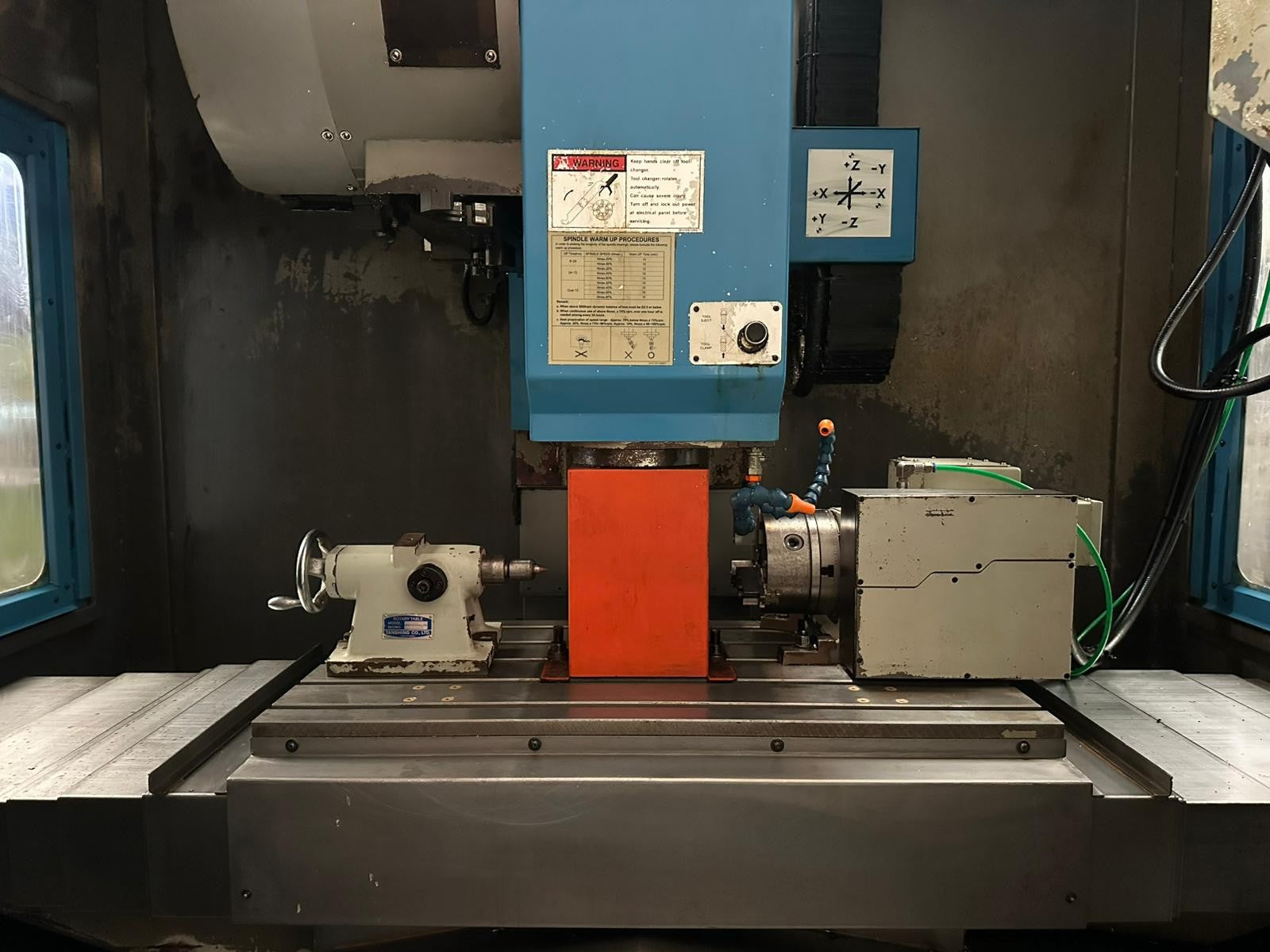

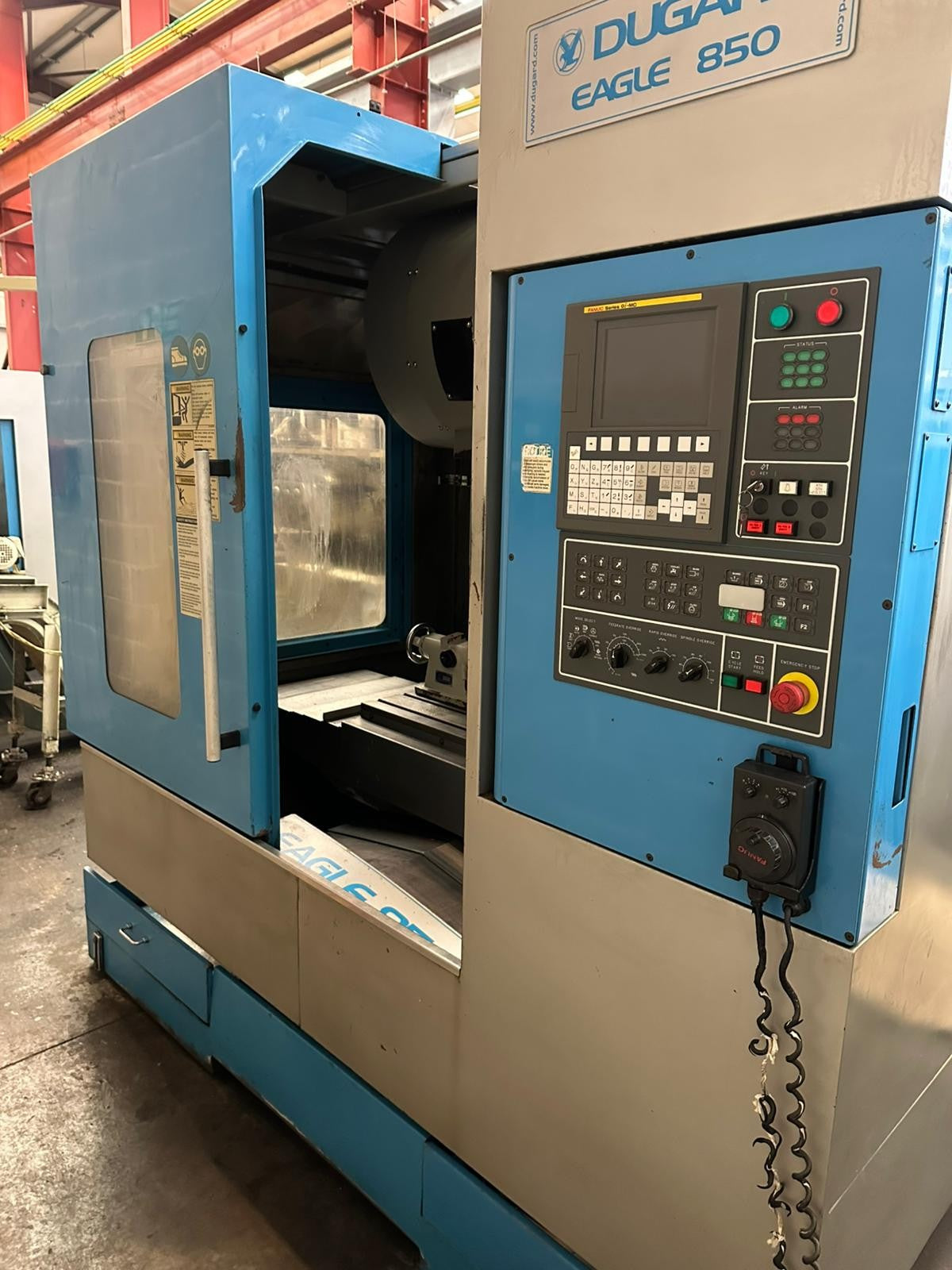

2011 Dugard 850 CNC Machining Centre

X / Y / Z travel: 850 × 520(–530) × 510 mm

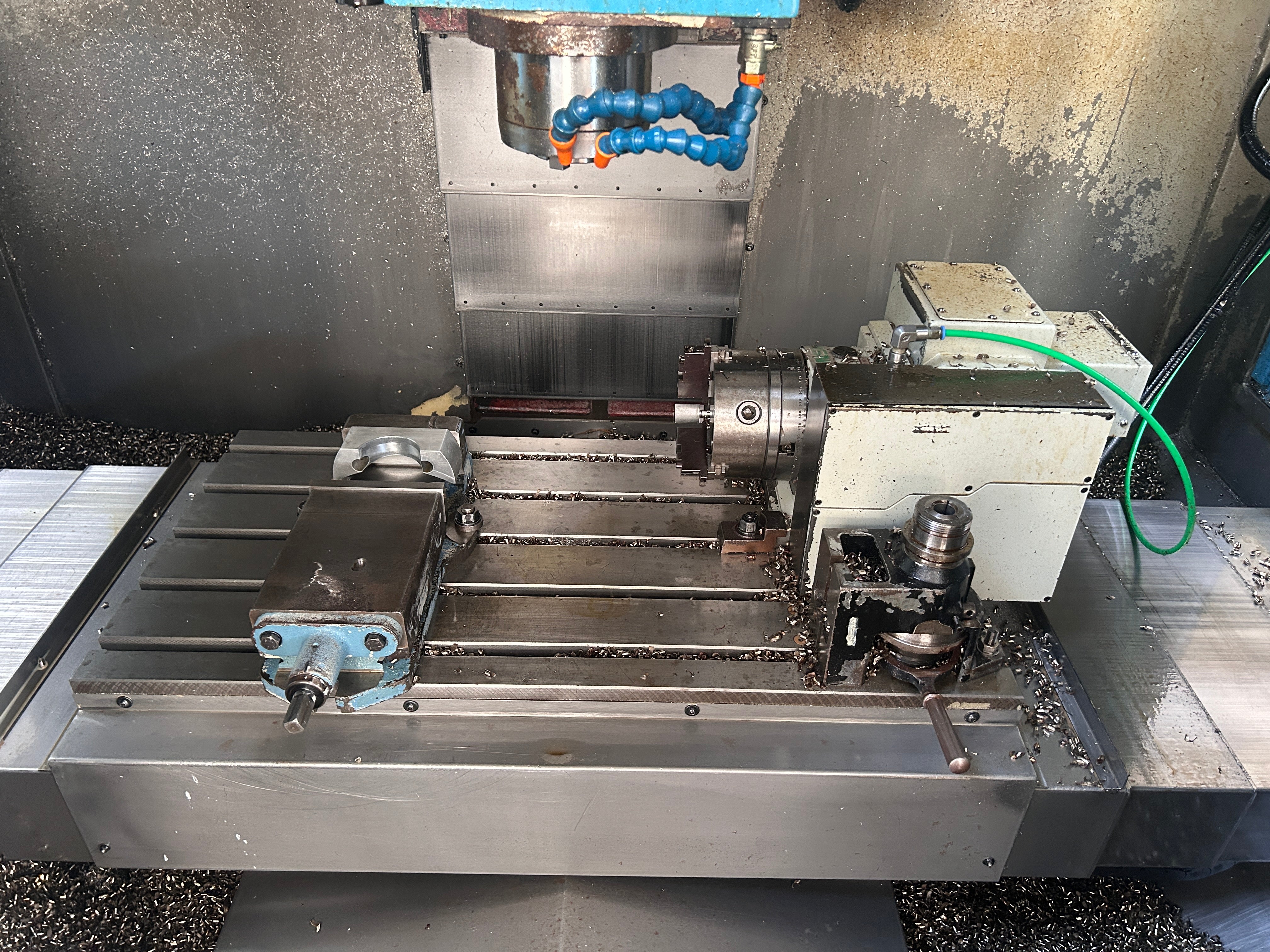

Table size: 1,000 × 510 mm with 5×18 mm T-slots at 100 mm spacing

Max table load: 500 kg

Spindle taper: BT40 (SK40 optional)

Spindle speed: 80–8,000 rpm; optional 10k/12k/15k

Spindle power: 11 kW continuous, 15 kW peak (17 kW on some units)

Rapid traverse: X 30 m/min, Y 30 m/min, Z 24 m/min; cutting feedrates up to 10 000 mm/min

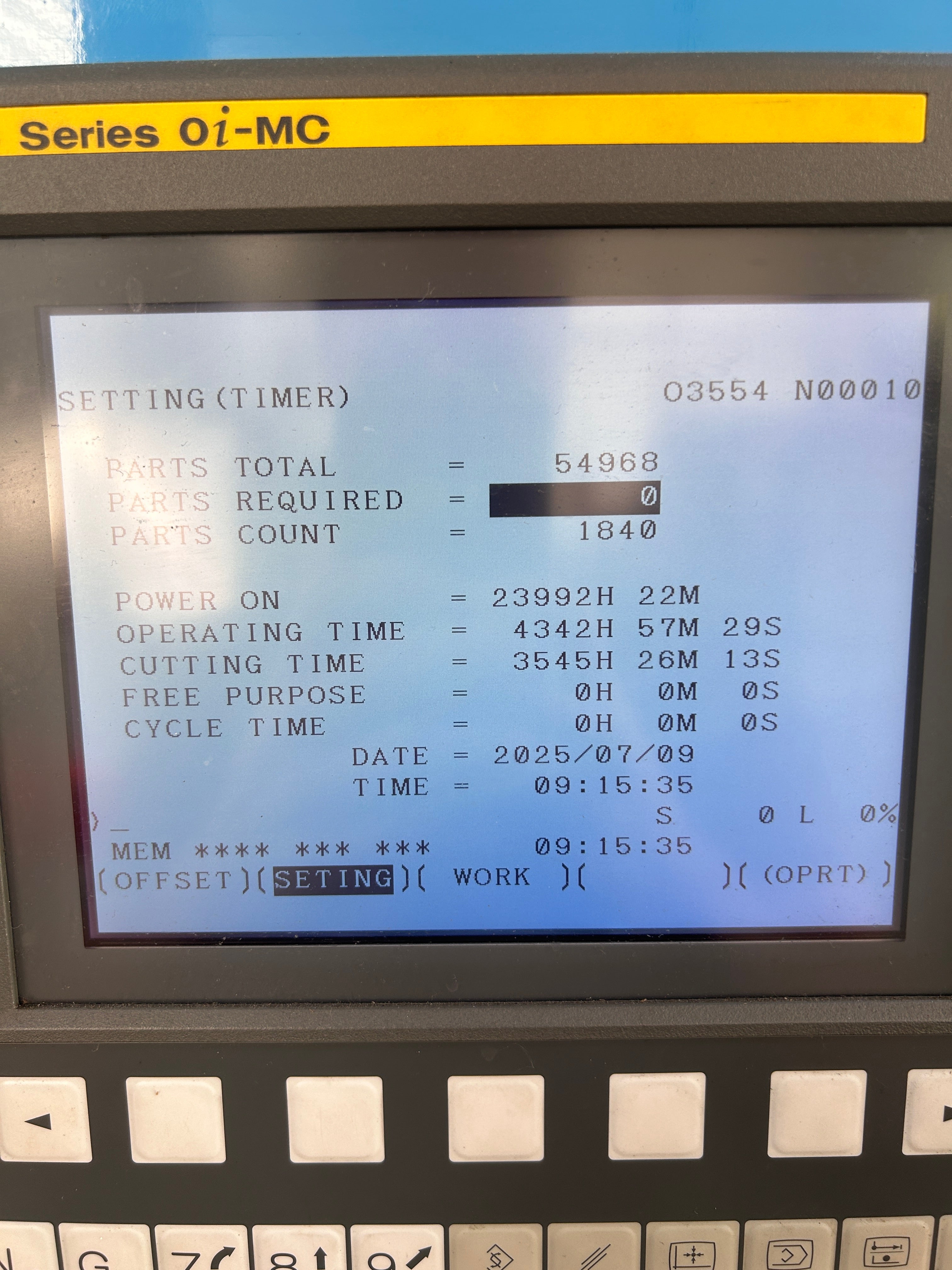

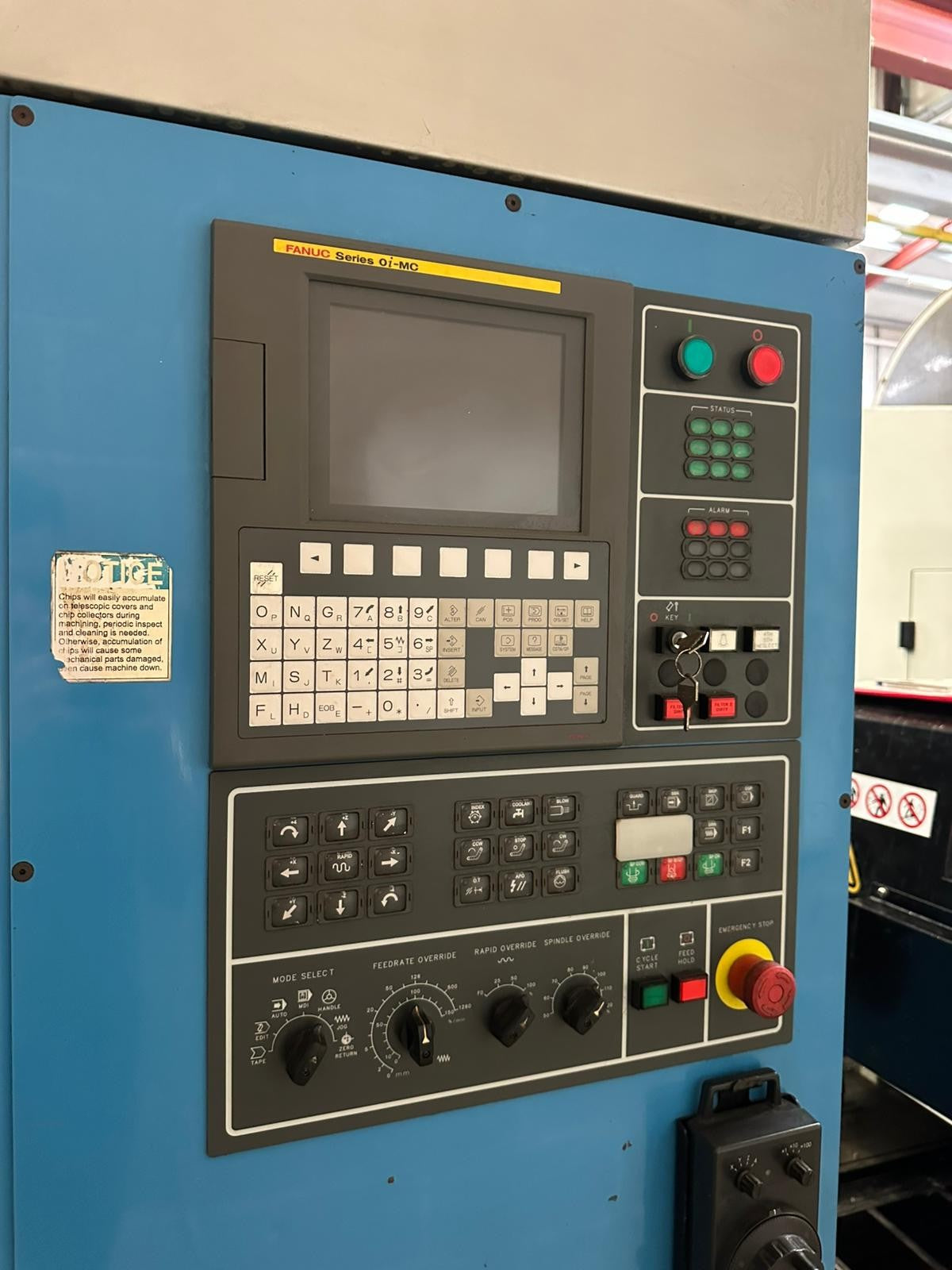

CNC control: Fanuc 0i‑MD

Tool magazine: 24-tool carousel (bidirectional, 6–7 kg/tool, Ø80 mm max, T-T/C-C 2–6 sec)

Machine footprint/weight: approx. 2.30 × 2.12 × 2.58 m; 5.5 tonnes
