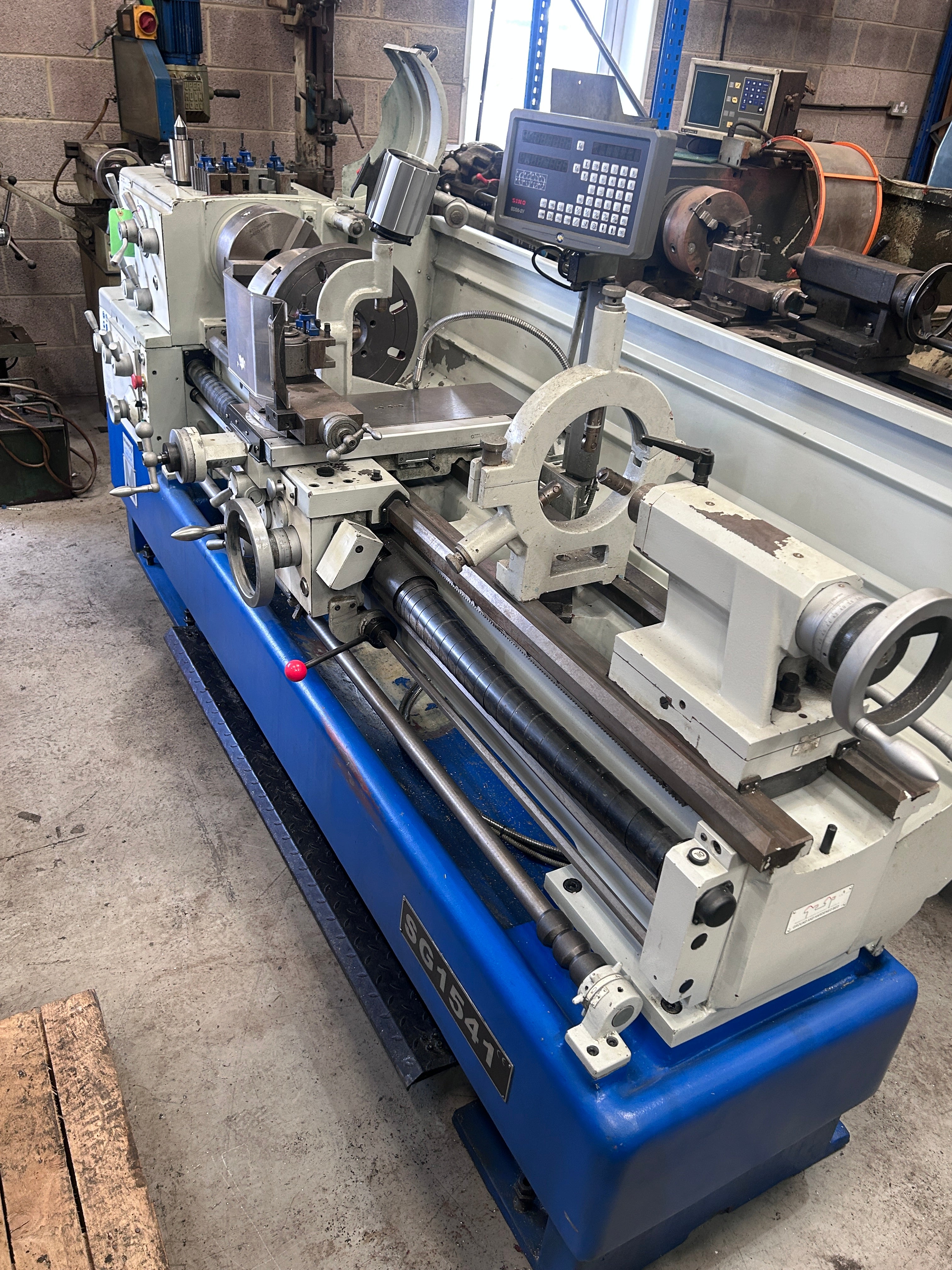

2017 Meyer SG1541 Gap Bed Lathe

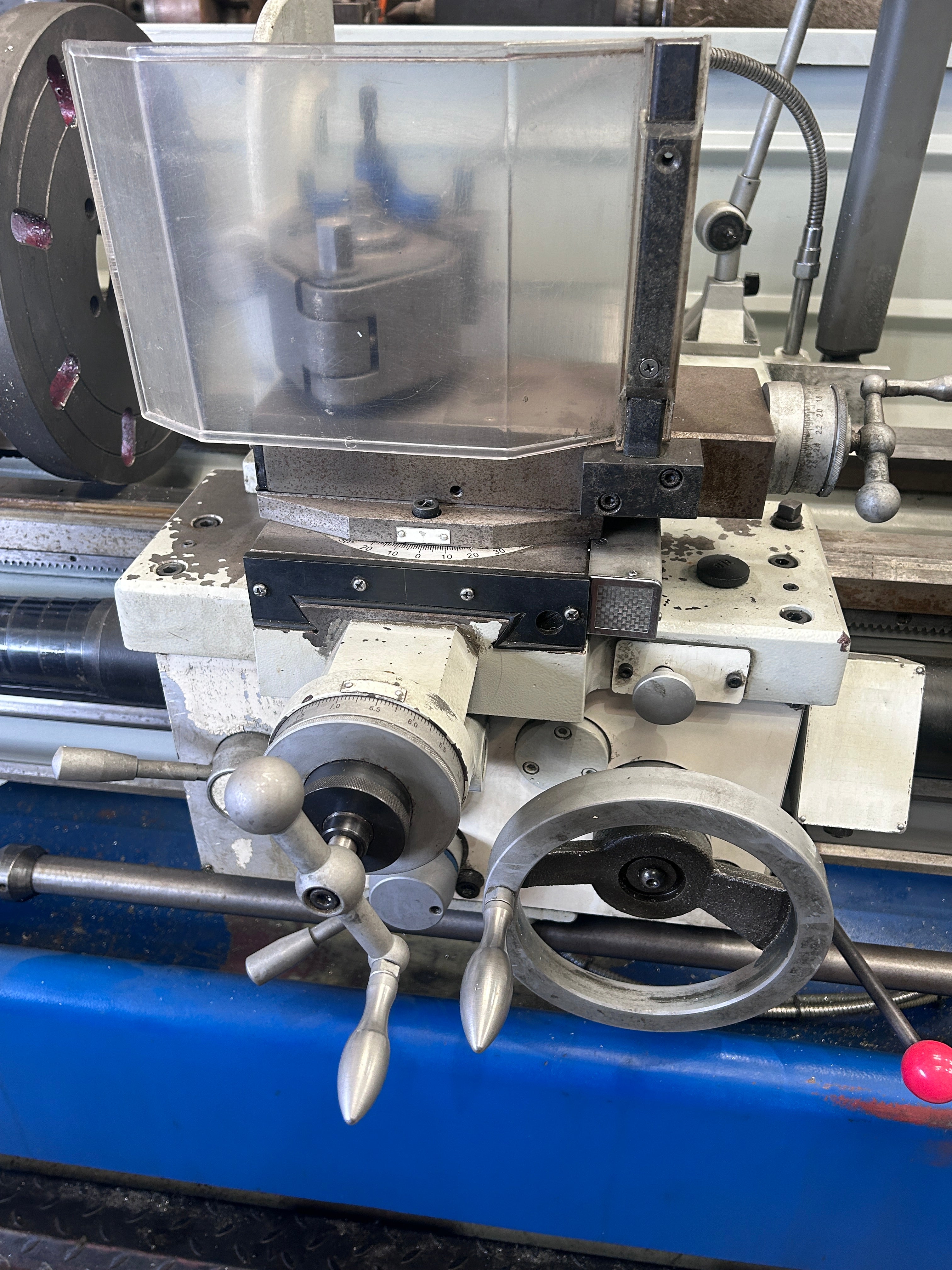

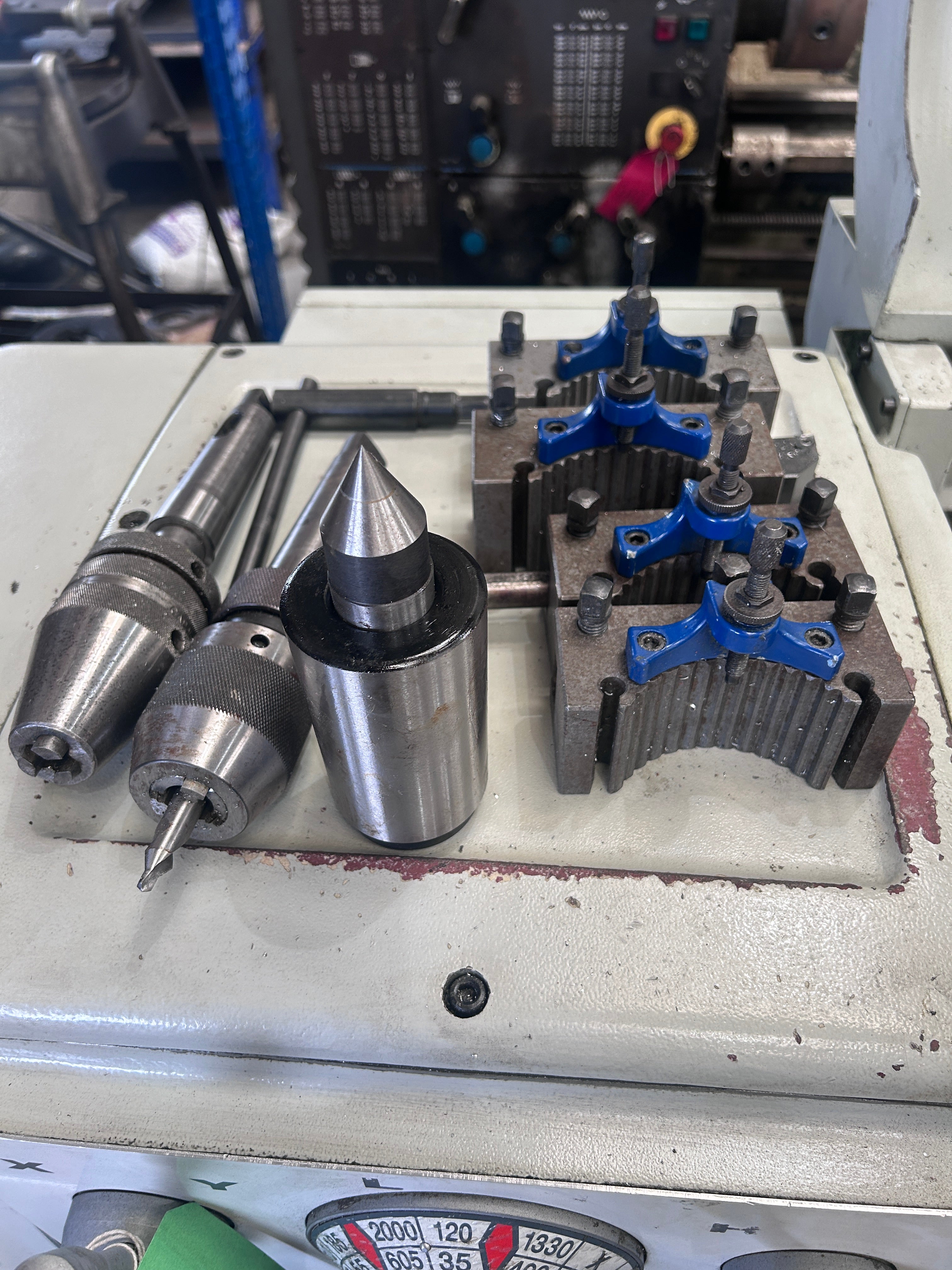

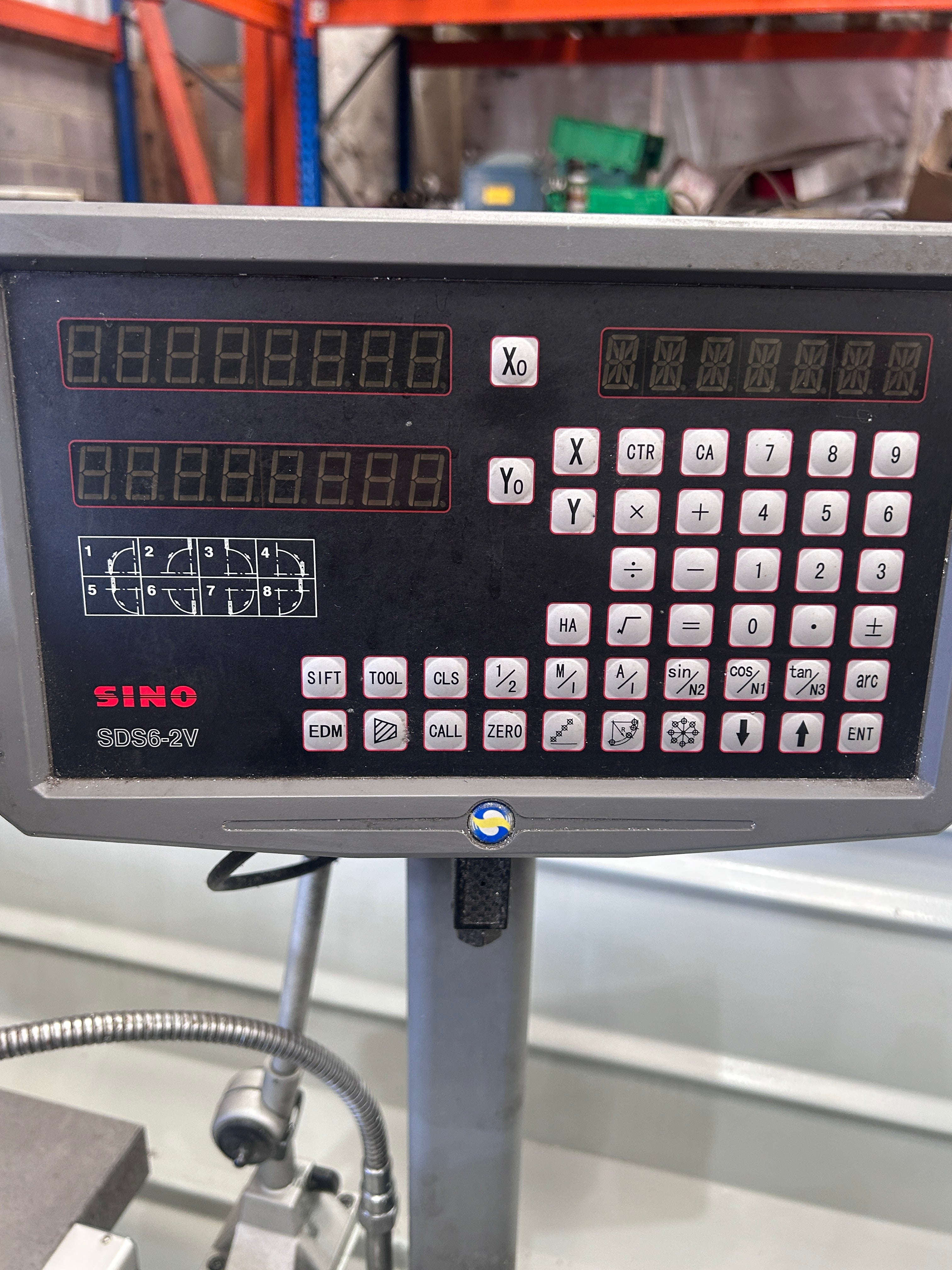

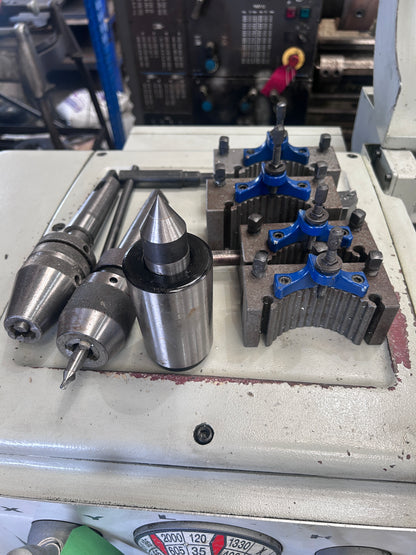

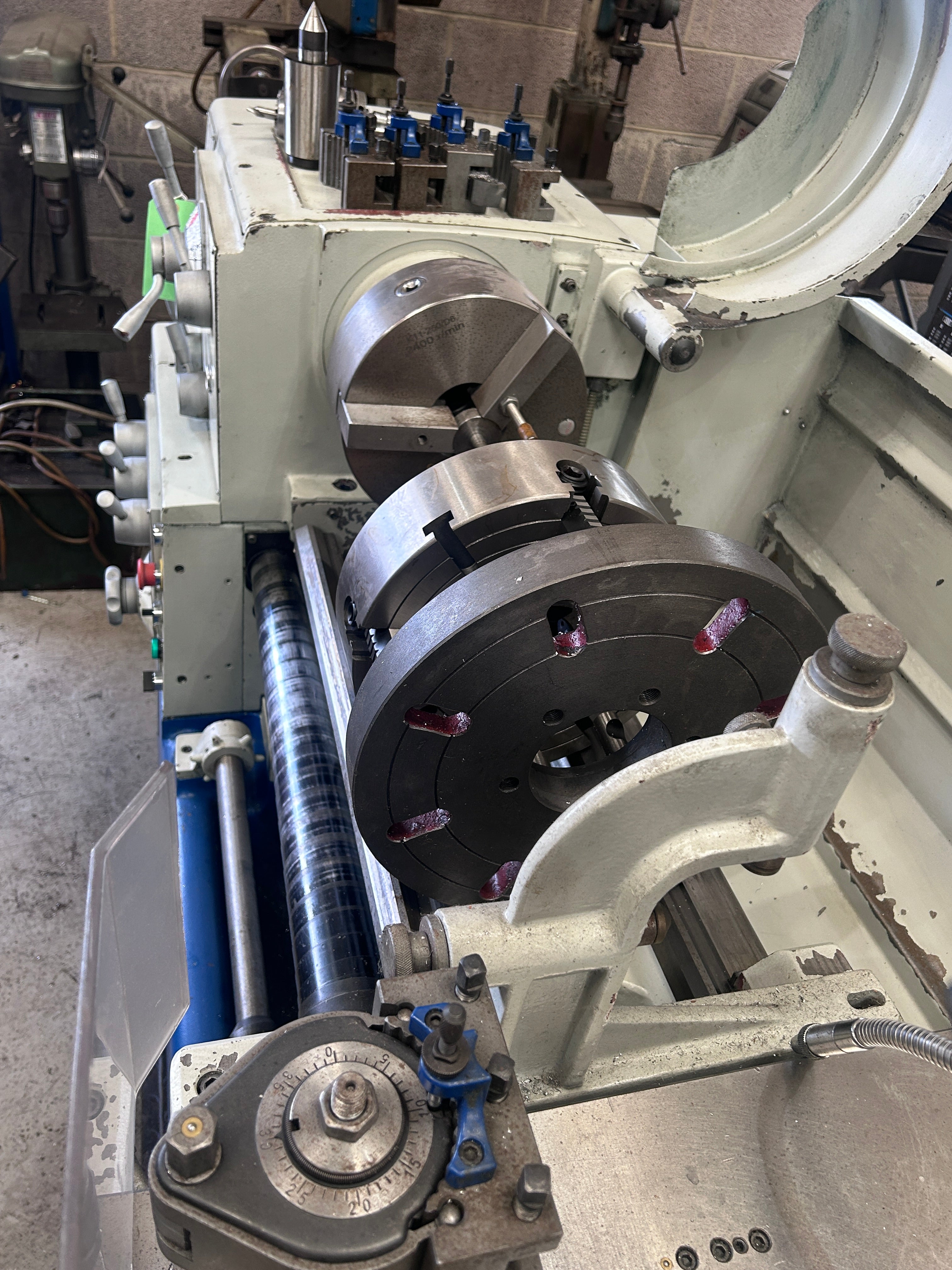

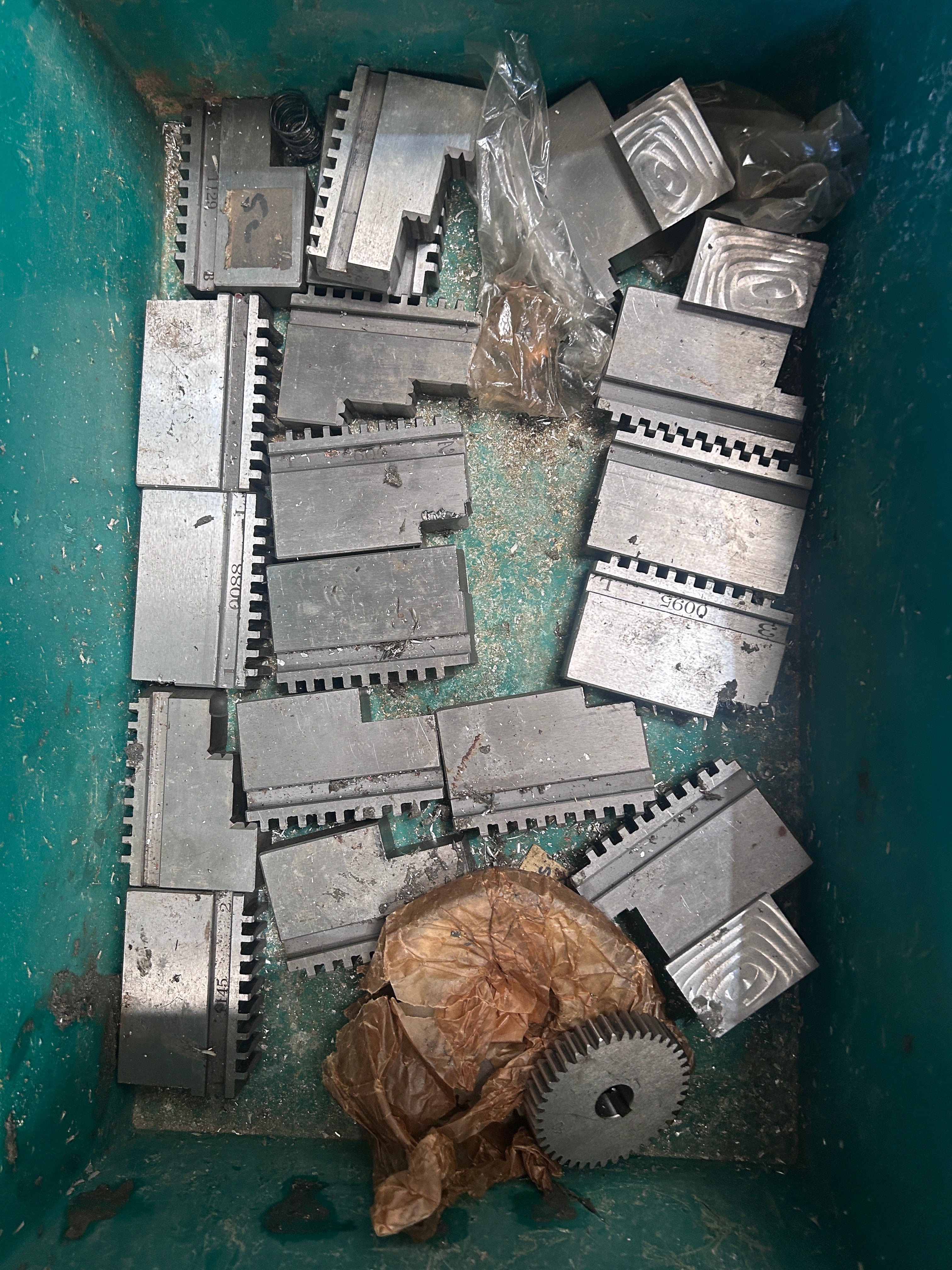

The heavy duty SG machines have the added benefit of 2 axis DRO and the super quick tool change system fitted as standard equipment. All Meyer lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.
- Swing over bed mm 410
- Swing over cross-slide mm 224
- Swing over gap mm 640
- Length of gap mm 155
- Distance between centres mm 1500
- Width of bed mm 300
- Longitudinal - no of steps 42
- Longitudinal - range mm/rev 0.031 - 1.7
- Cross - no of steps 42
- Cross - range mm/rev 0.014 - 0.784
- Max travel of cross-slide mm 290
- Max travel of compound rest mm 120
- Thread Cutting
- Metric - no of steps 41
- Metric - range mm 0.1 - 1.4
- Imperial - no of steps 60
- Imperial - range TPI 2 - 112
- Diametric - no of steps 50
- Diametrice - range DP 4 - 112
- Module - no of steps 34
- Module - range MP 0.1 - 7
- Lead screw pitch mm 6
- Spindle nose D1-6
- Spindle bore mm 58
- Spindle bore taper MT 6
- Spindle speeds - no of steps 12
- Spindle speeds - range rpm 25-2000
- Quill diameter mm 60
- Quill travel mm 120
- Quill taper MT 4
- Motor kW 4
- Length mm 2720
- Width mm 1040
- Height mm 1340
- Weight kg 1970
Pairs well with
Specifications
| Manufacturer | Meyer |
| Model | |
| Condition | Used |
Request a Quote for 2017 Meyer SG1541 Gap Bed Lathe
