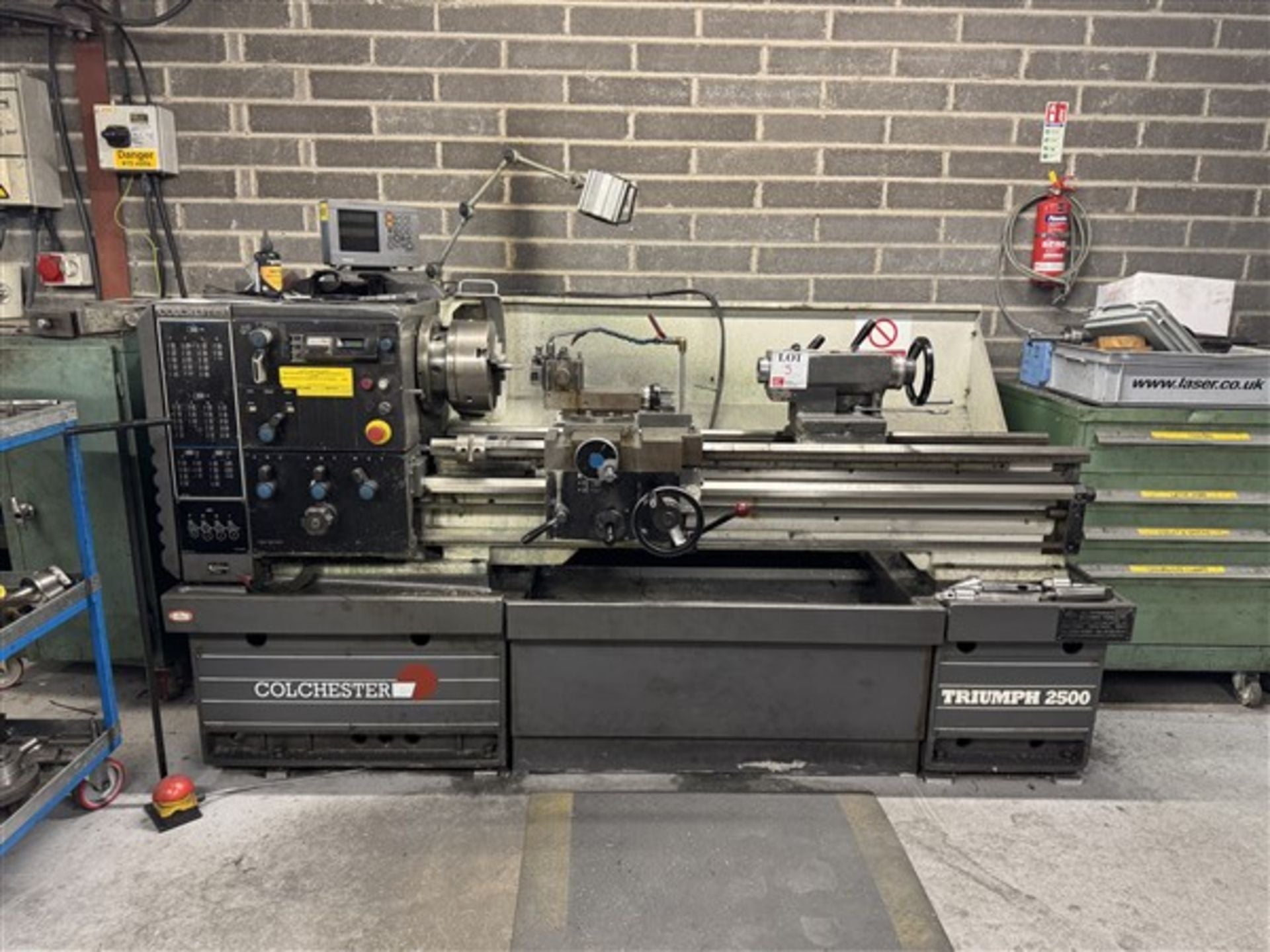

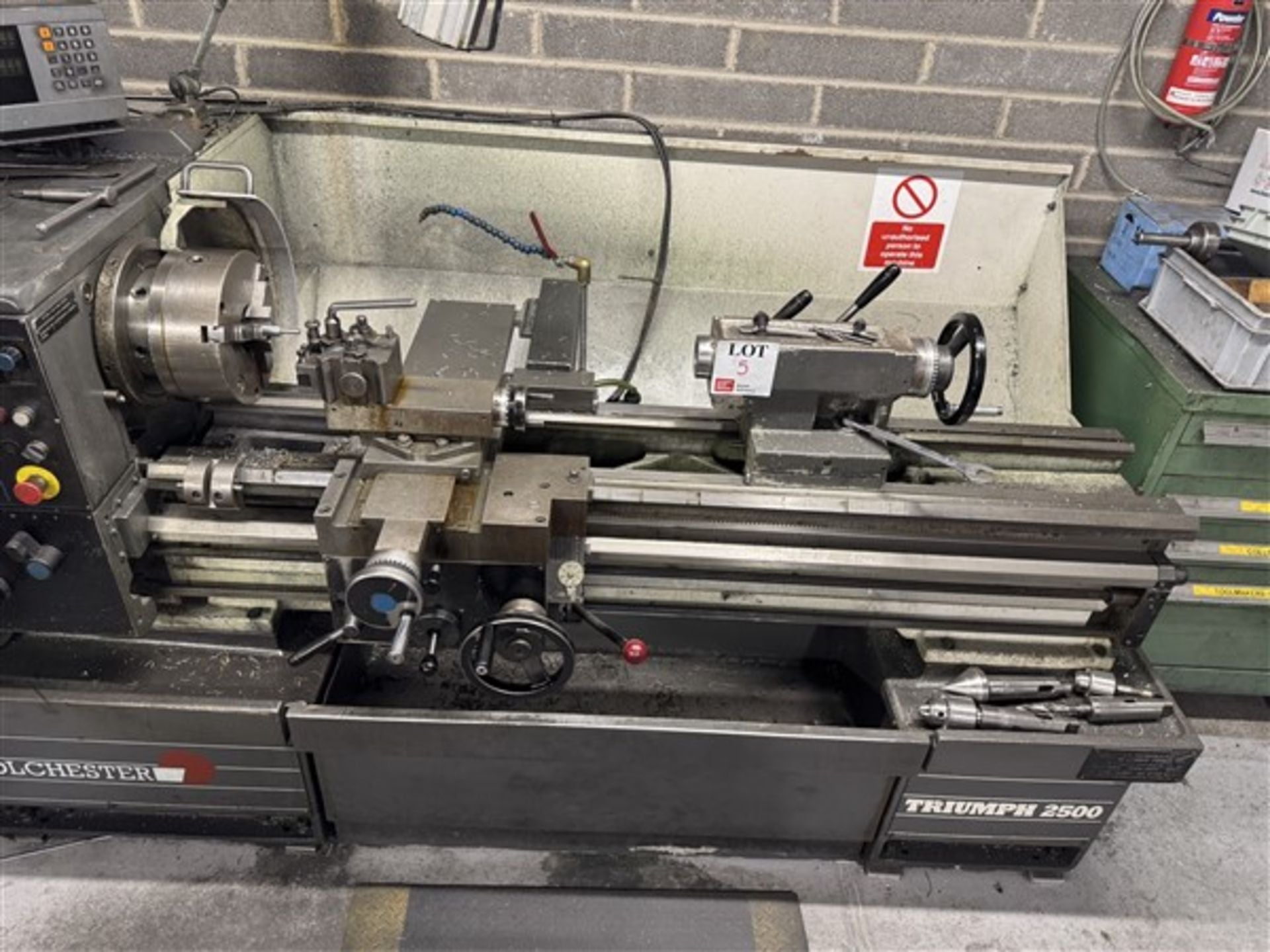

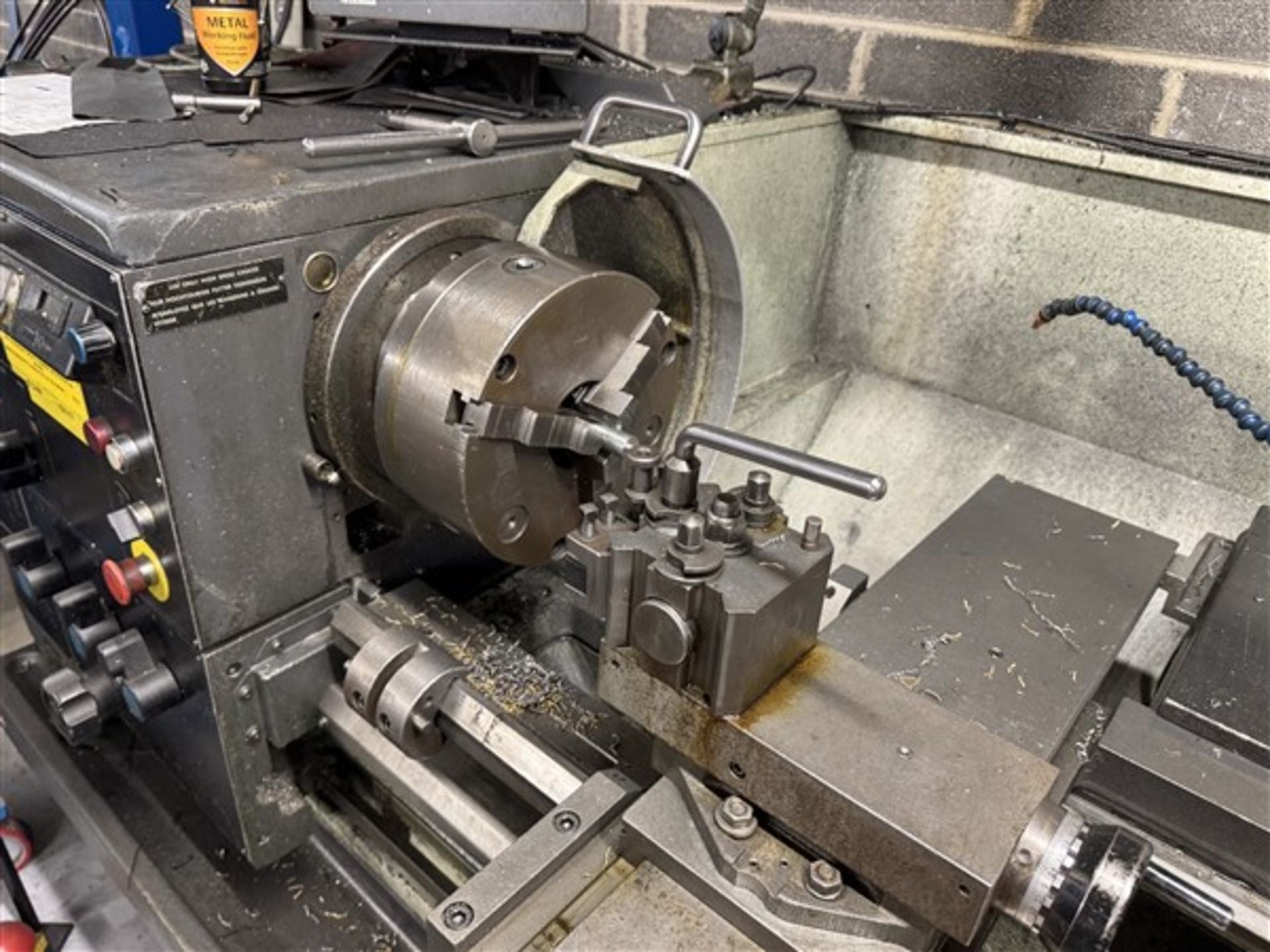

Colchester Triumph VS2500 15'' x 50'' Gap Bed Lathe

CAPACITY
Swing over bed    400mm    15.7″
Swing over cross slide    246mm    9.6″
Height of centres    195mm    7.7″
Swing in gap    585mm    23″
Gap width from faceplate    165mm    6.5″
Bed length    1270mm    50″
Distance between centres    1270mm    50″

SPINDLE
Spindle nose    D1 – 6 Camlock    D1 – 6 Camlock
Taper in spindle nose bush    No 4 MT    No 4 MT
Spindle bore    54mm    2.1″
Maximum spindle speed    2500 rpm    2500 rpm
Spindle speed ranges
     Low    14 – 300 rpm    14 – 300 rpm
     Medium    36 – 830 rpm    36 – 830 rpm
     High    109 – 2500 rpm    109 – 2500 rpm
Maximum spindle motor power    7.5kW    10 HP
Number of Imperial Pitches    56    56
Range of Imperial Pitches    2 – 56 TPI    2 – 56 TPI
Number of Diametral Pitches    20    20
Range of Diametral Pitches    8 – 56 DP    8 – 56 DP
Number of Metric Pitches    51    51
Range of Metric Pitches    0.2 – 14mm Pitch    0.2 – 14mm Pitch
Number of Module Pitches    20    20
Range of Module Pitches    0.2 – 3.5 MOD    0.2 – 3.5 MOD

TAILSTOCK
Tailstock quill taper    No 5 MT    No 5 MT
Tailstock quill travel    145mm    5.7″
