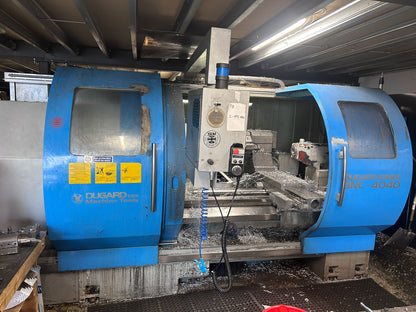

Dugard BNC 4040 CNC Lathe

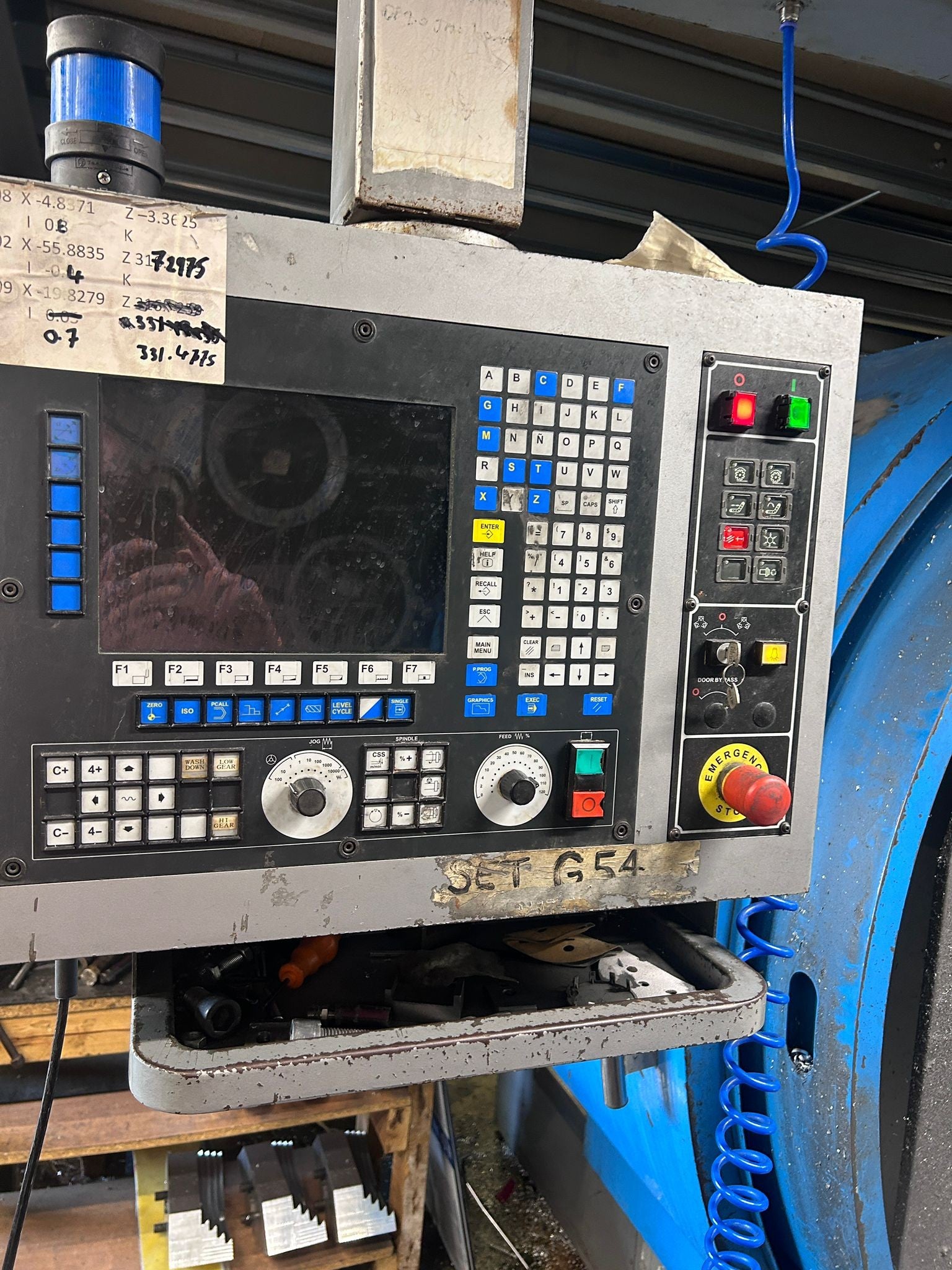

Control: Fagor 8055TC Control with 11” LCD Full Key Controller
Serial No.: 071110085
Year of Manufacture: 2007

Specification:
Maximum Swing Diameter Over Bed 1,025mm
Maximum Swing Over Cross Slide 676mm
Maximum Swing in Gap 1,276mm
Gap Length, Spindle Nose to Bed 372mm
Maximum Distance between Centres 1,000mm
Maximum Cross Travel X Axis 535mm
Maximum Longitudinal Travel Z Axis 1,000mm
Spindle Bore TBC A1-11

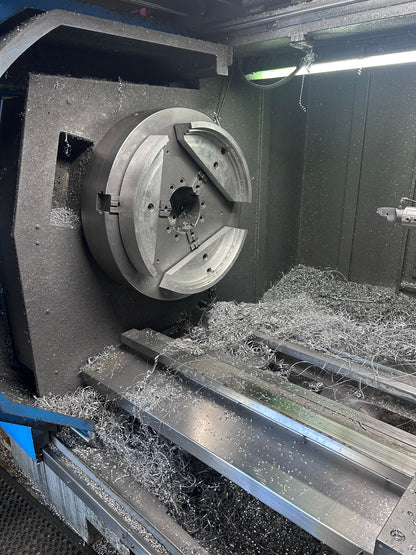

Chuck Size 800mm 4 Jaw
Spindle Speed 106mm/bore 15 – 1,480rpm
Spindle Power with Digital CNC Spindle Drive 22/33kW
Rapid Traverse Speed on X Axis 10m/min.
Rapid Traverse Speed on Z Axis 12m/min.
Front Hydraulic Tool Post 4 Way – 60mm x 60mm (not currently fitted)

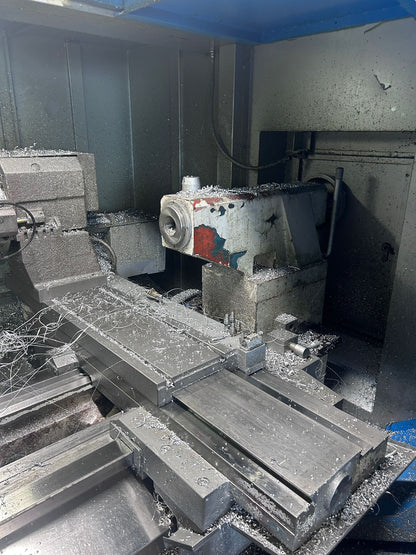

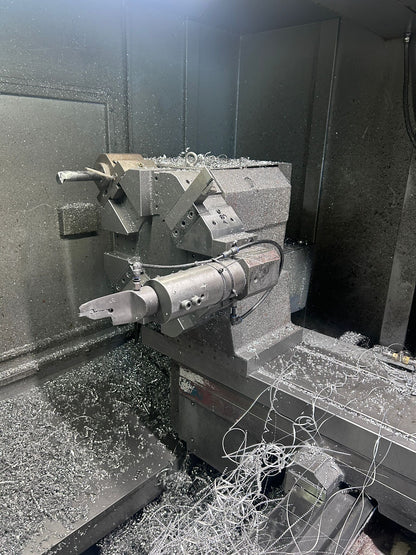

Rear Mounted bi-directional Turret 8 station
Removable Renishaw Tool Setting Probe
Tool Shank 32 x 32mm
Boring Bar Size (maximum ) 32mm dia.
Machine Weight 15,000Kg

Complete with:
Swarf Conveyor
Portable Handwheel

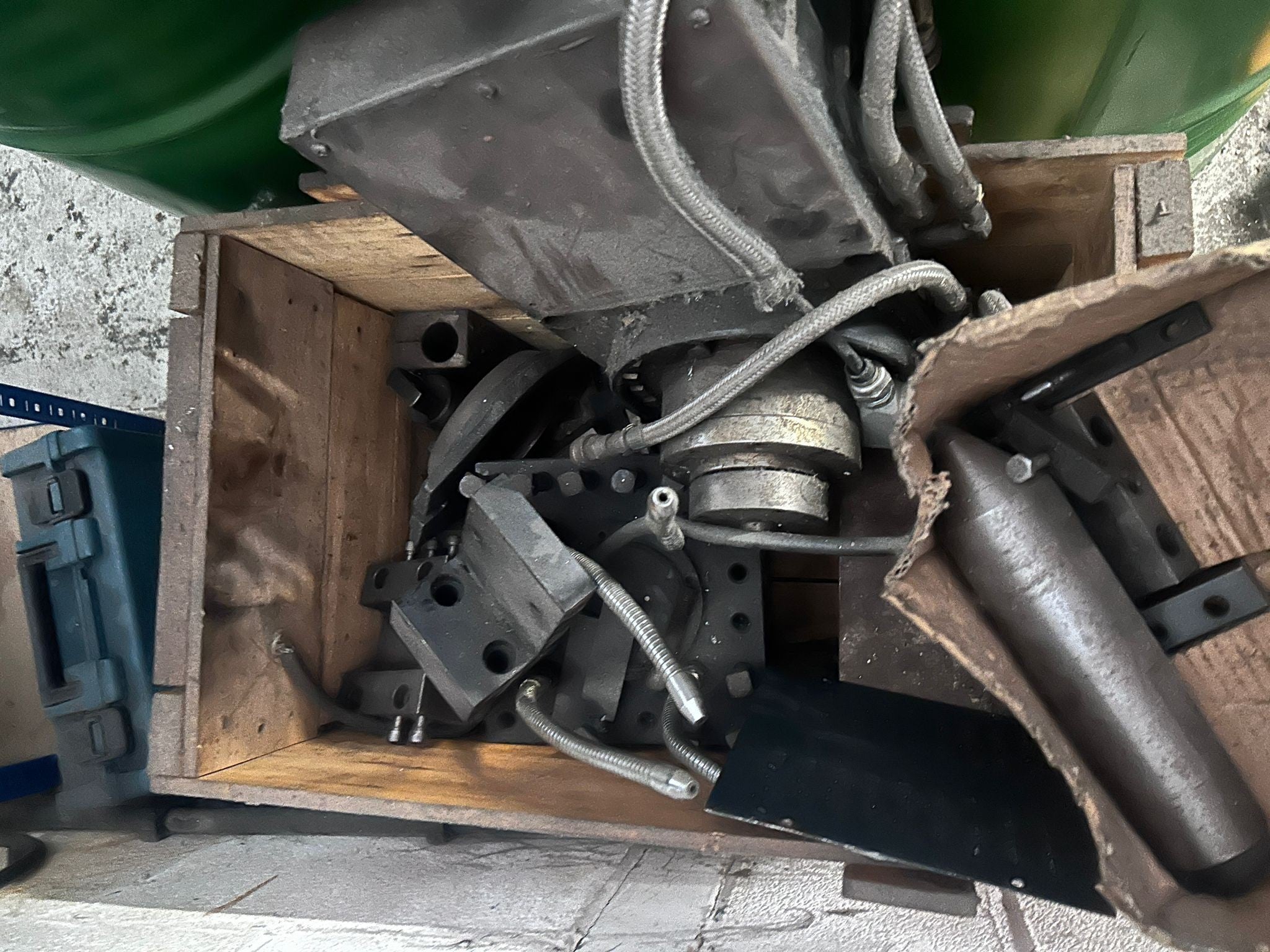

Selection of 32x32 tool wedges and 50mm ID bolt on boring bar holders
