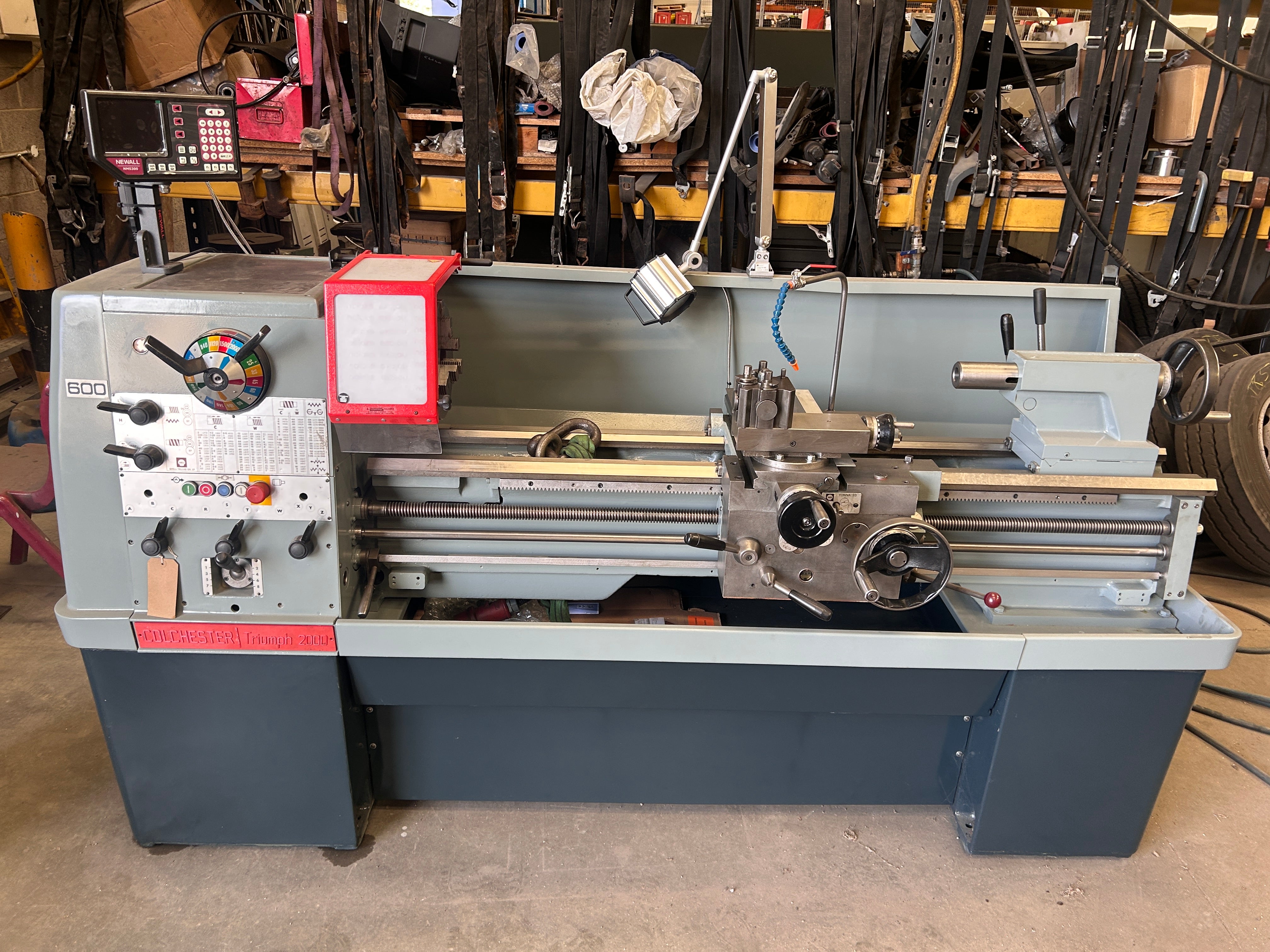

Fully Refurbished Colchester Triumph 2000 50'' Gap Bed Lathe

• Height of Centres 190mm
• Max’ Distance Between Centres 50''
• Max’ Swing over Bed 390mm
• Max’ Swing over Cross Slide 240mm
• Max’ Swing in Gap 580mm
• Spindle Bore 54mm
• Spindle Nose D16 Camlock
• Spindle Taper in Bush No.4 Morse
• Spindle Speeds 25 - 2000 rev/min
• Tailstock No.4 Morse
• 3 Phase Electrics
• 7.5hp Motor
• Supplied with:
• 3 Jaw Chuck
• Quick Change Tool Post
• DRO

Work completed

• Fully stripped down
• Gears and shafts cleaned and changed if required.
• Full clutch service
• Lubrication system fully cleaned up
• Feed cleaned and bearings changed

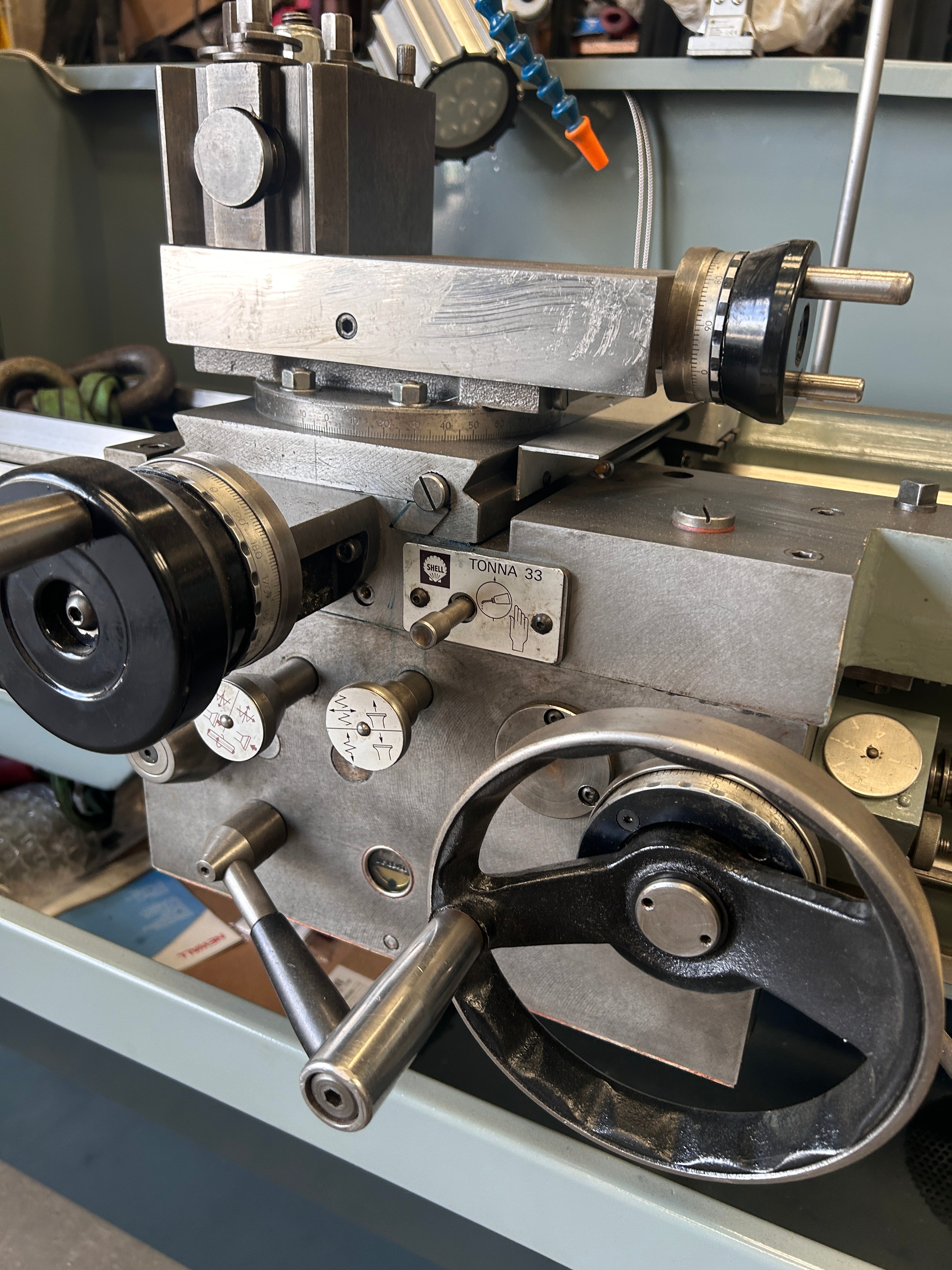

• Apron gear box cleaned out and serviced
• Feed sleeves and seals changed
• Bed removed and rebedded and dowelled
• Bed ground
• Tursite to the saddle

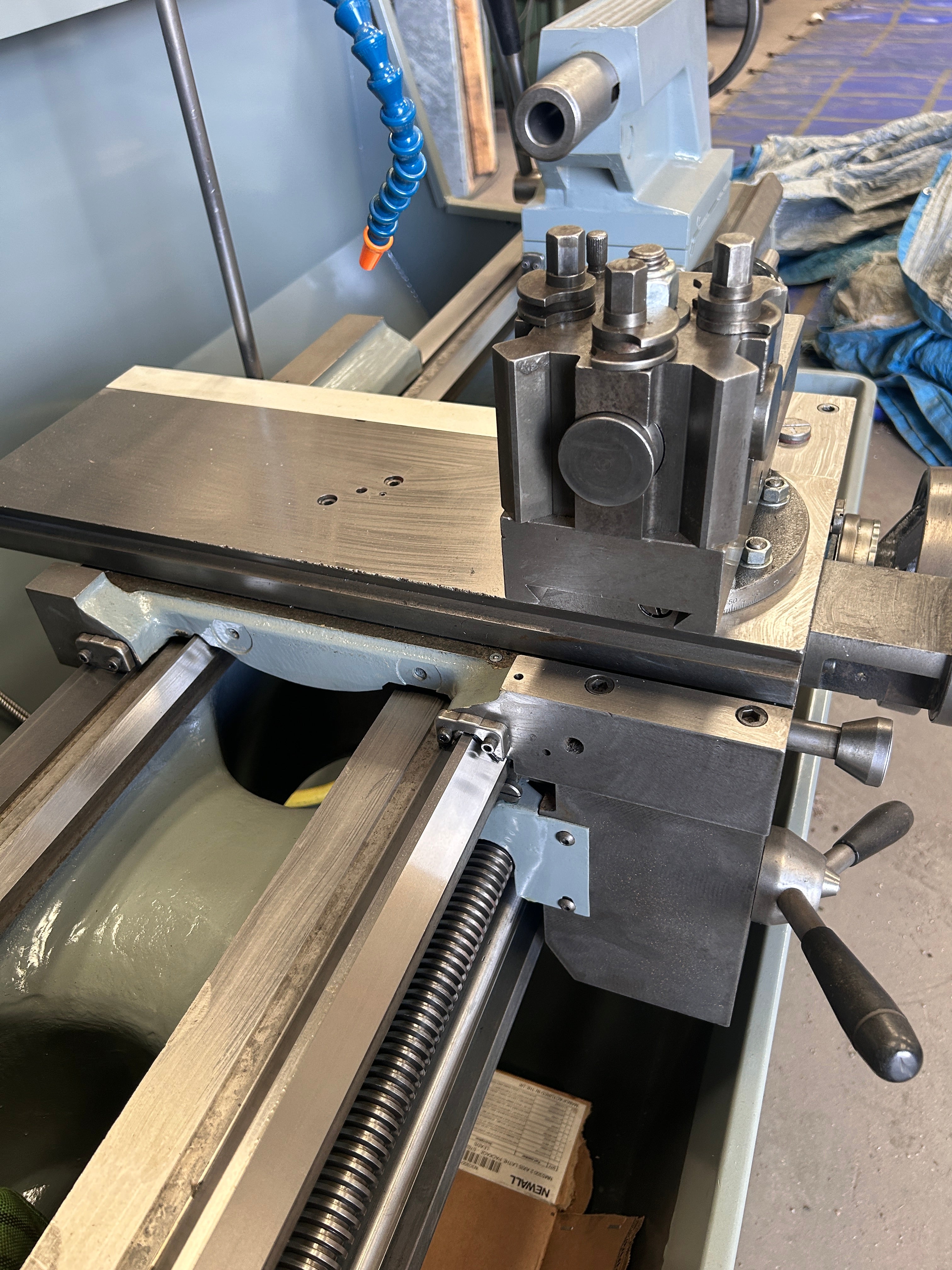

• Regrind saddle, cross slide and shoes
• Compound slide reground

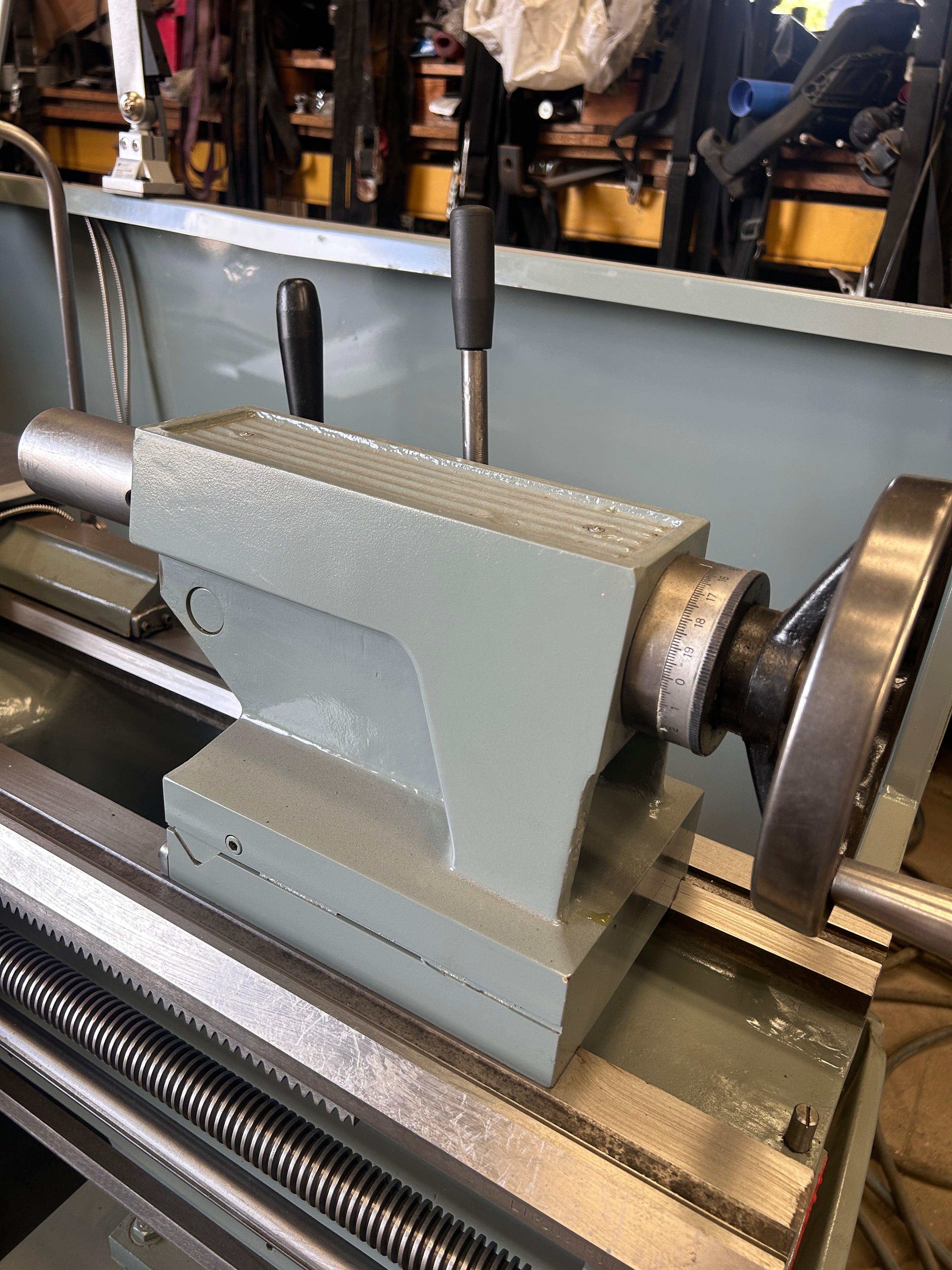

• Tailstock split and realigned
• Base scraped into bed section
• Saddle and cross slide scrapped in
• New screws and nuts where required
• New half nuts and lead screw
• Fully repainted
• New slight glasses and legends

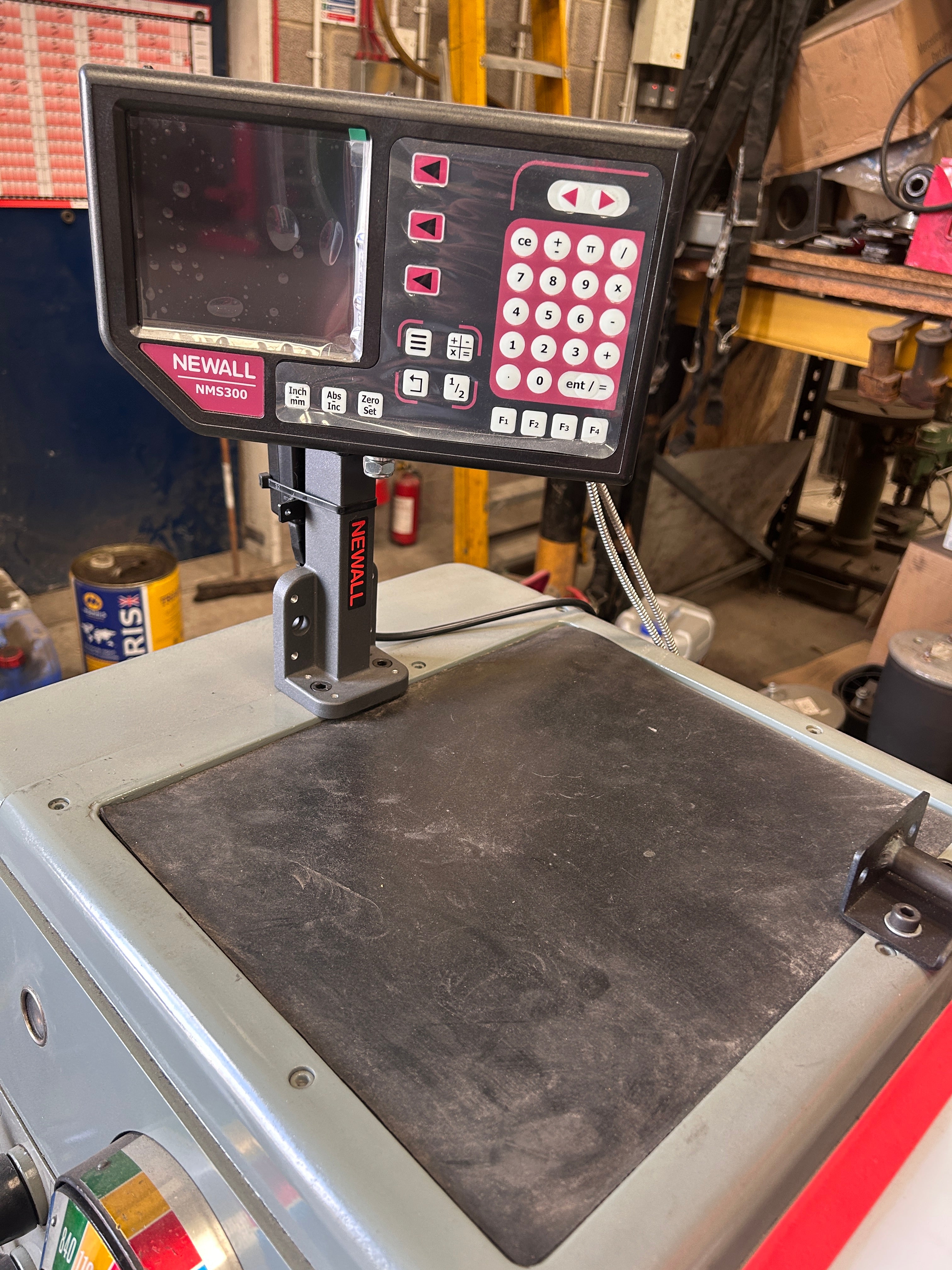

• New DRO

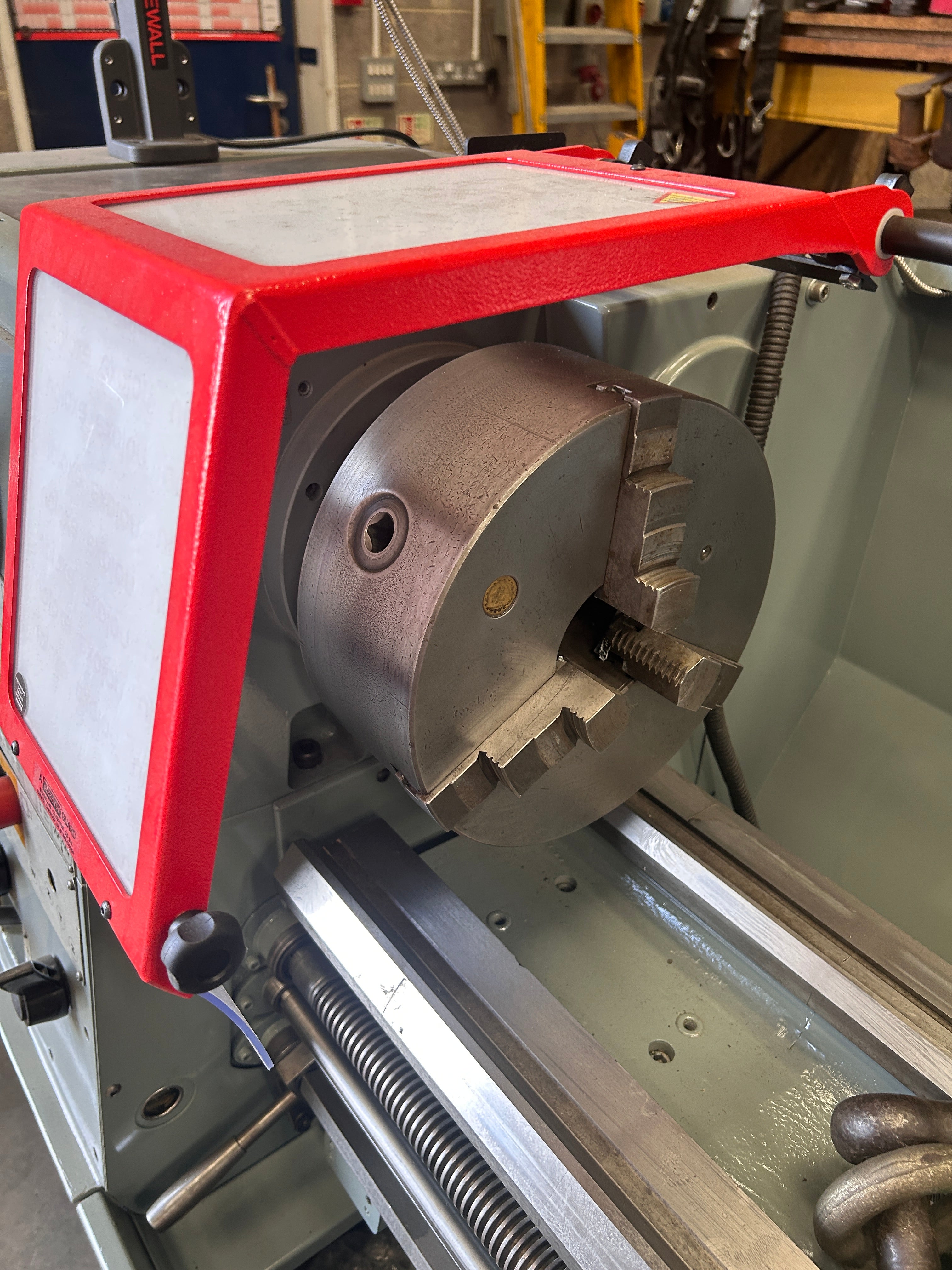

• New chuck guard
• New light
• Test cut along 10’’ to 1/10th thou from end to end
• Realign tailstock to ½ thou
