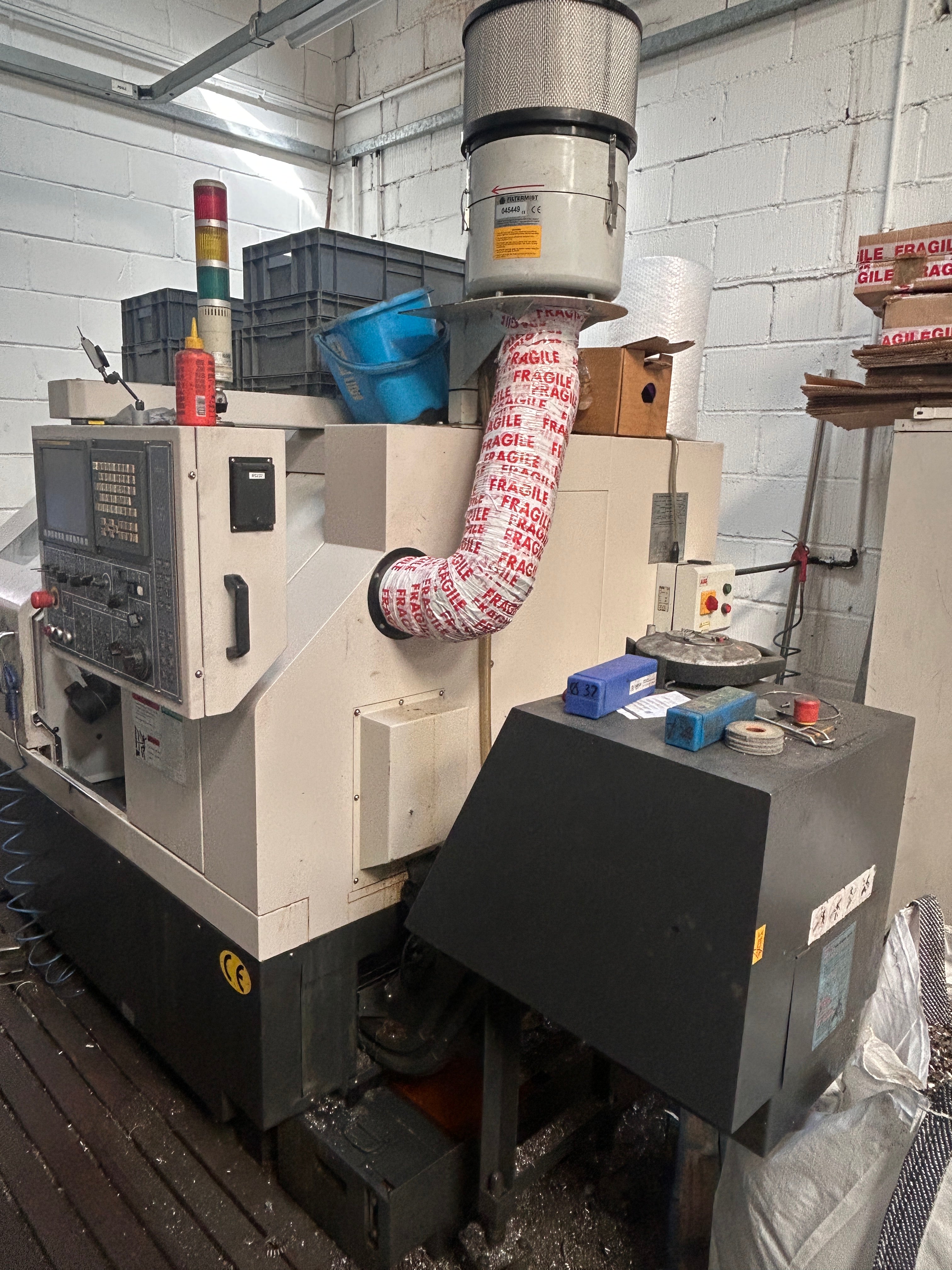

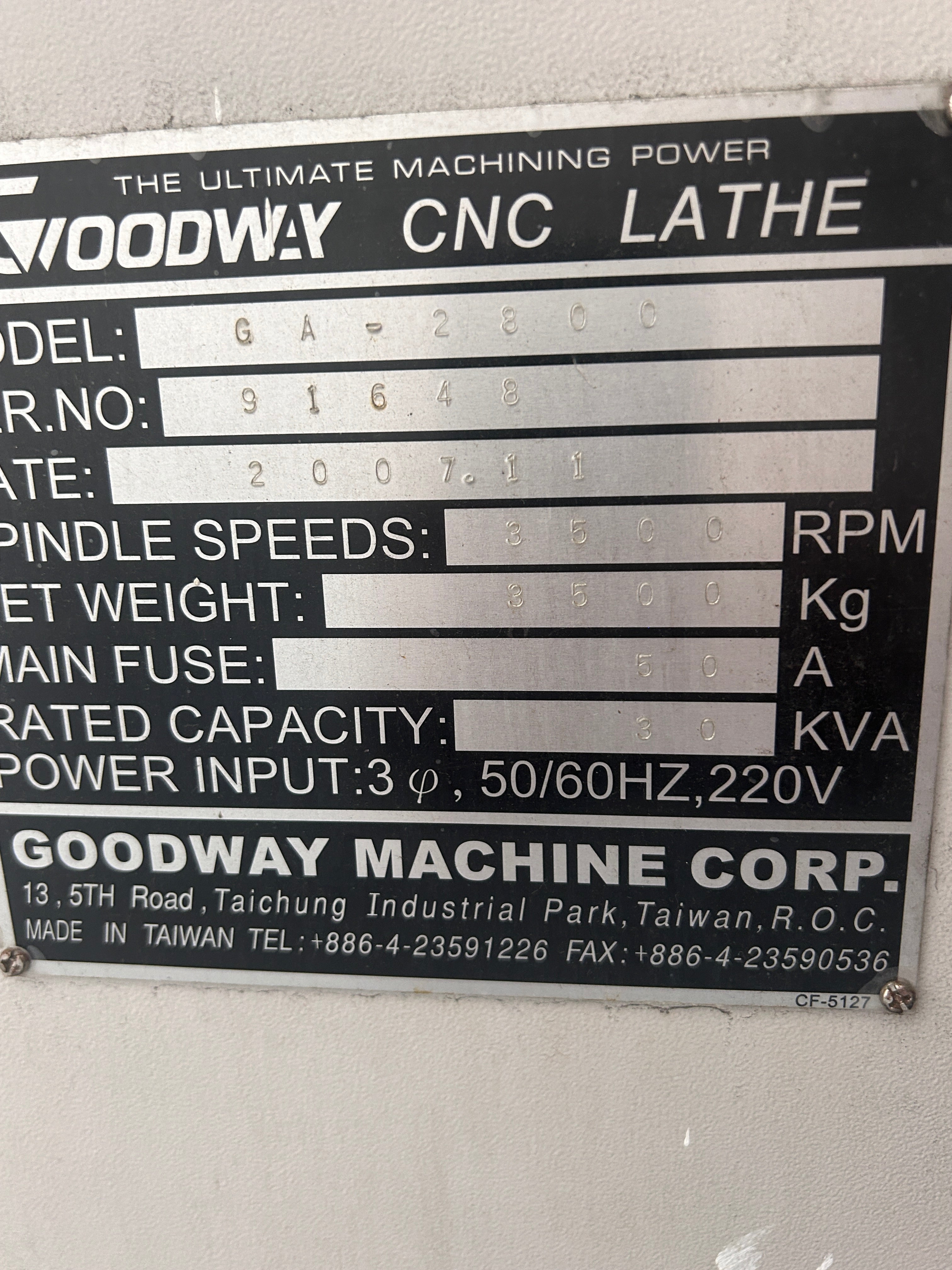

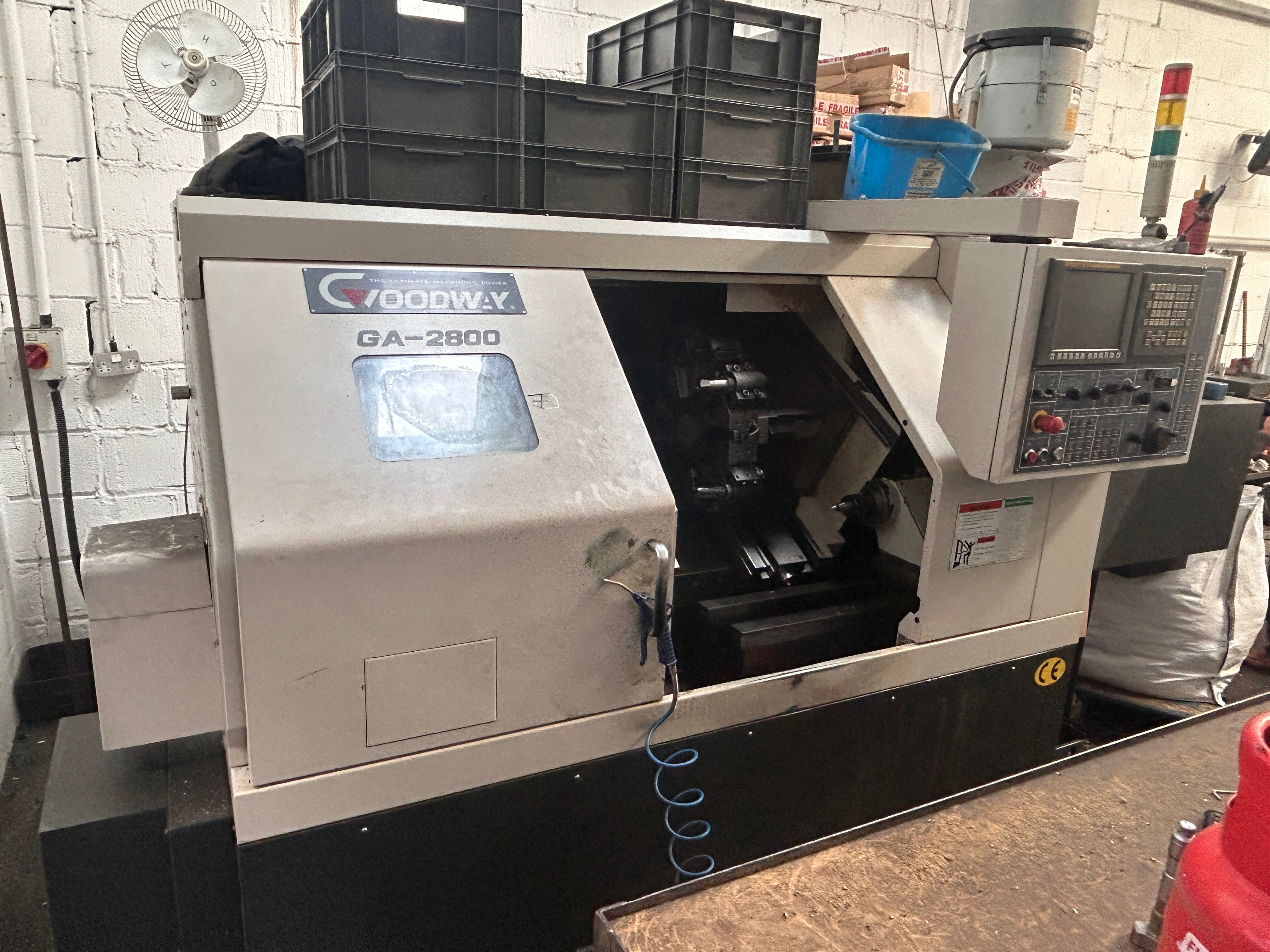

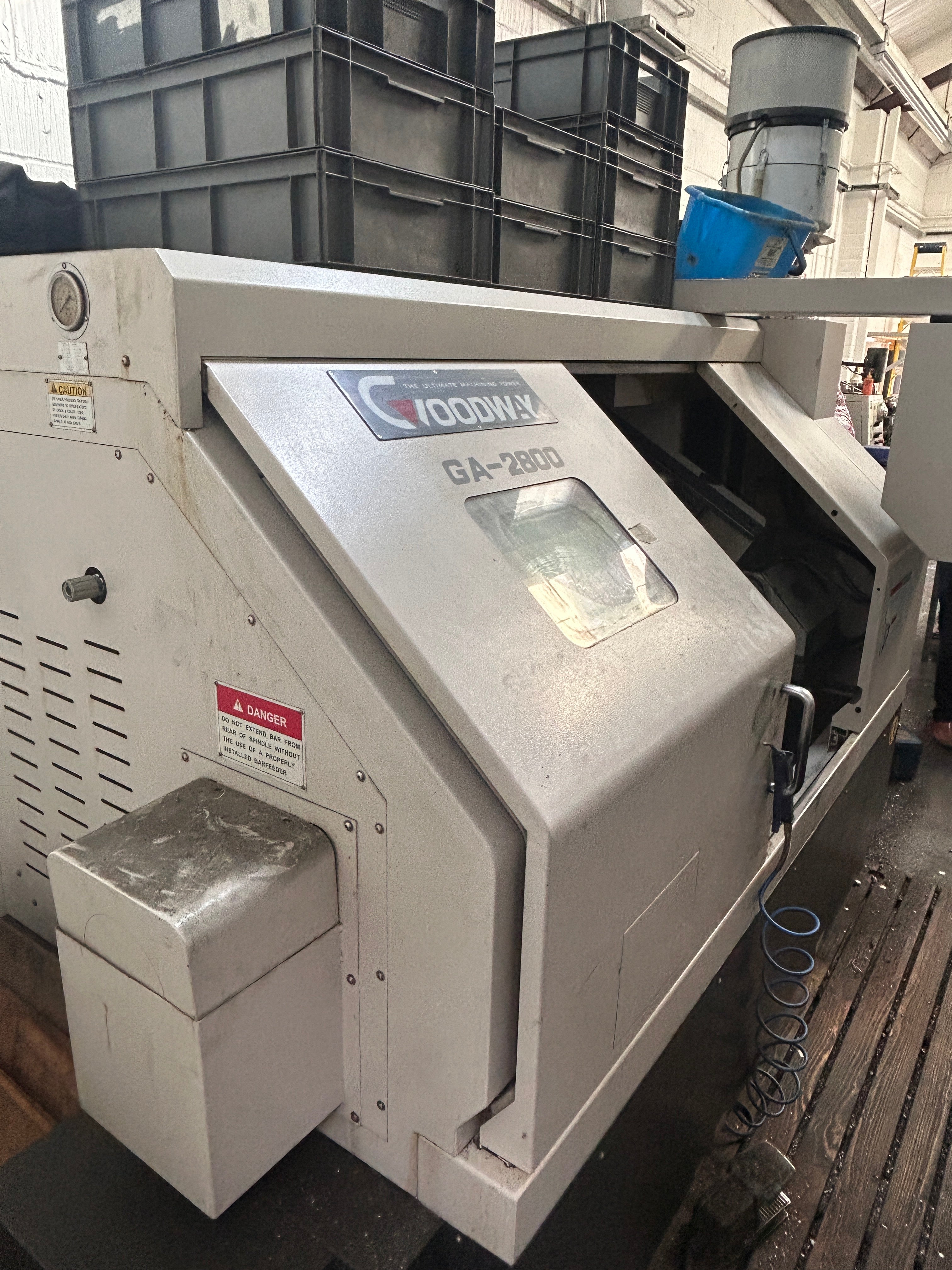

2007 Goodway GA-2800 CNC Lathe

Swing diameter: 580 mm; Swing over saddle: 400 mm

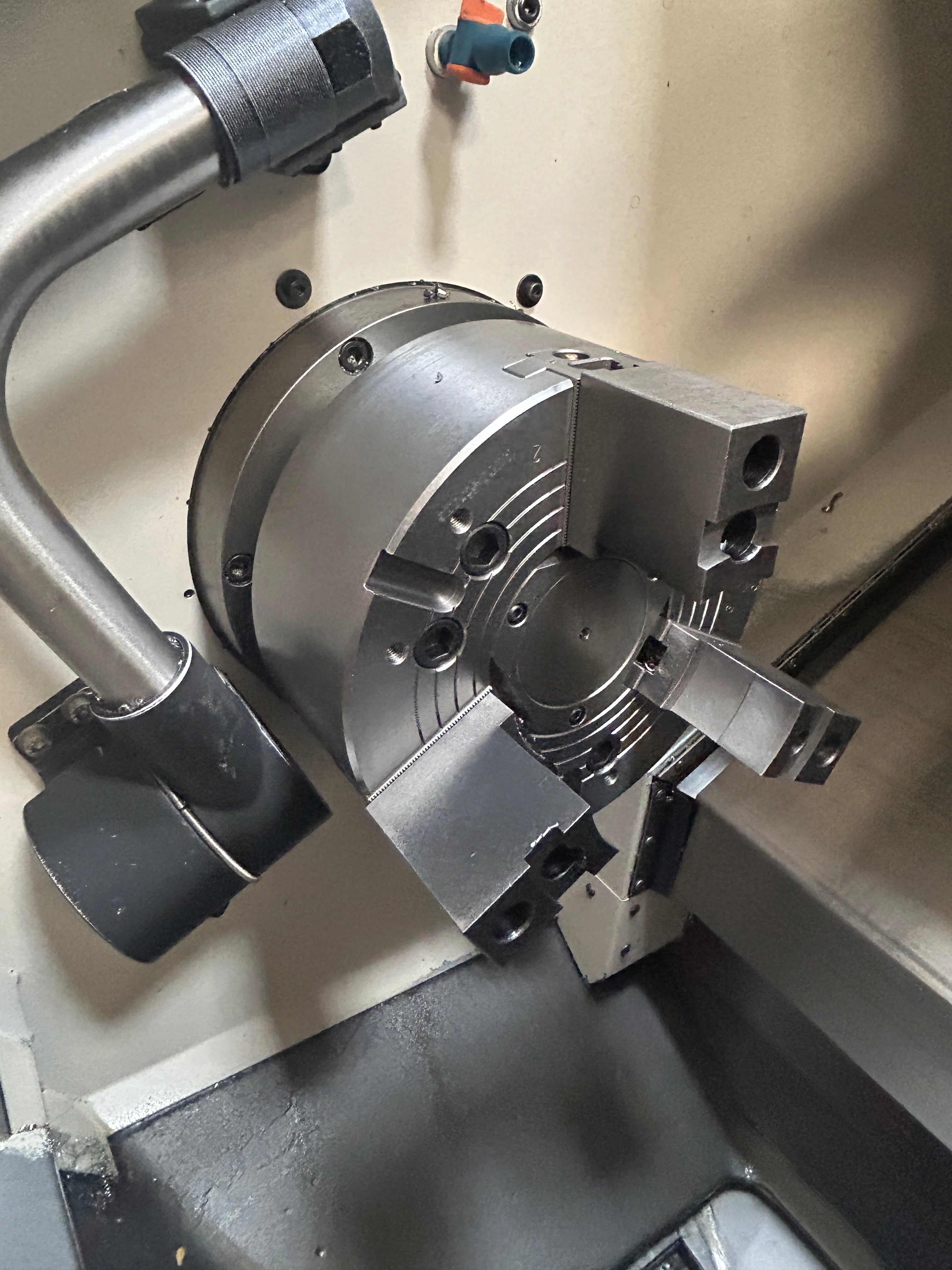

Turnable diameter: up to 350 mm; standard chucks 203 mm (8″) or 254 mm (10″)

Turning length options: 260 mm (C), 575 mm (M), 1,155 mm (LM)

Bar capacity: Ø 75 mm

Workpiece weight: up to 250 kg

X/Z travels: 205 mm / up to 1,230 mm; rapids X=20 m/min, Z=24 m/min

Spindle: Bore Ø 90 mm through-spindle

Speed range 35–3,500 rpm

11 kW continuous power (15 kW peak)

Spindle torque: approx. 325 N·m (30 min)

Features & Construction

Guideways: Hardened, ground box ways for rigidity

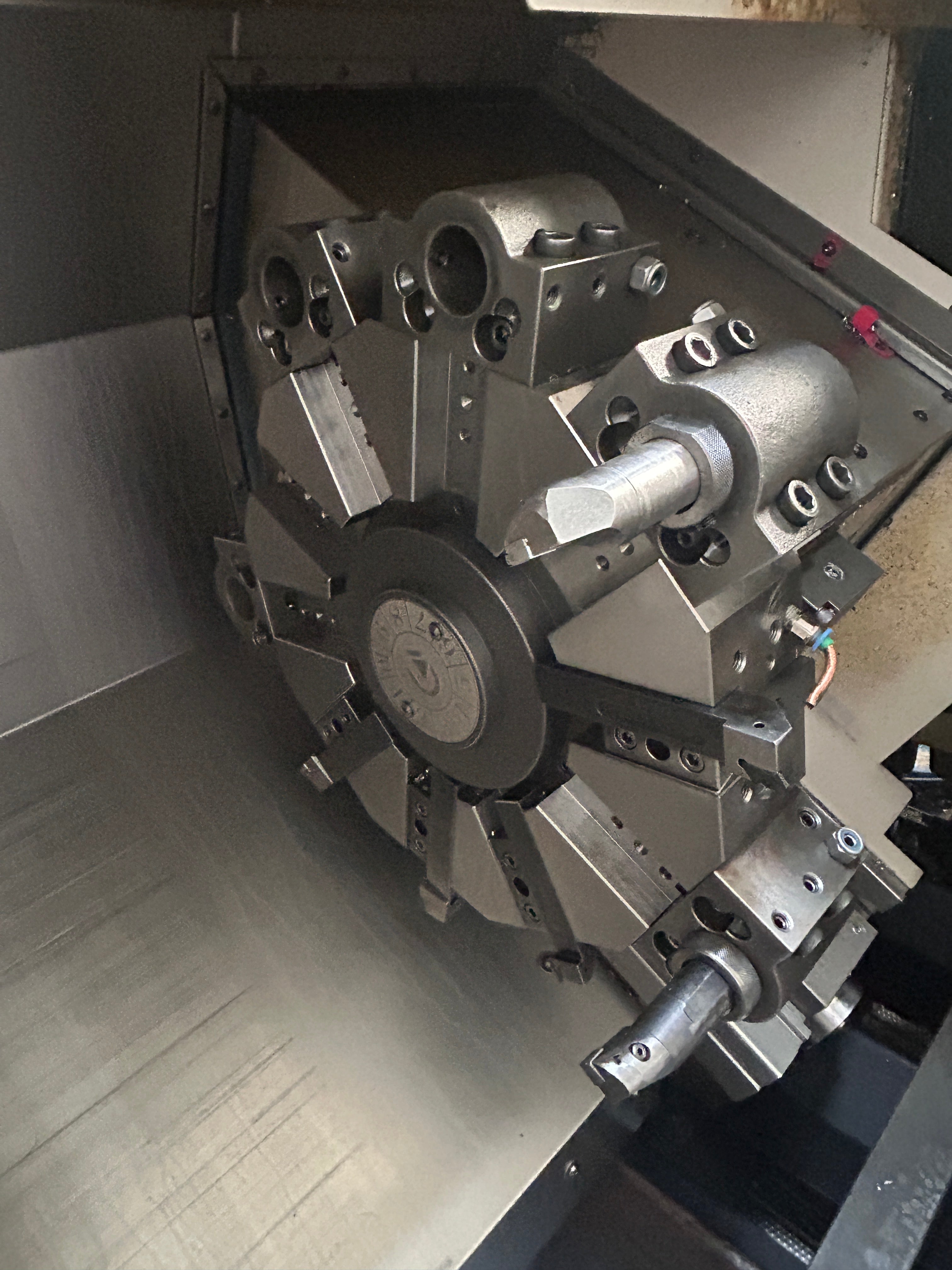

Turret: 12-station AC-servo indexing; optional live tooling (ER32, up to 4 kW, 4,000 rpm)

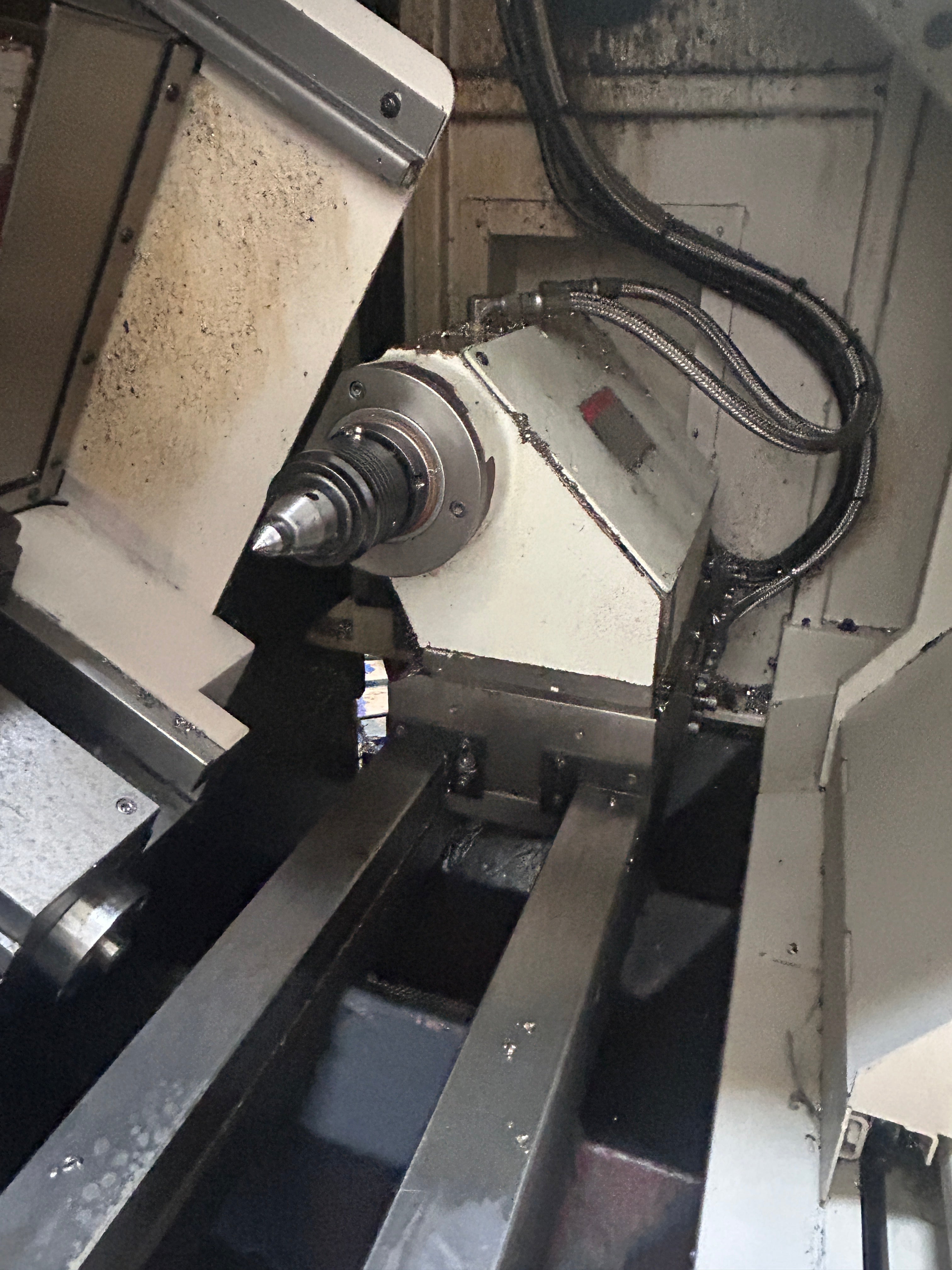

Tailstock: Programmable quill & base, taper MT‑4, 70 mm quill, 150 mm travel

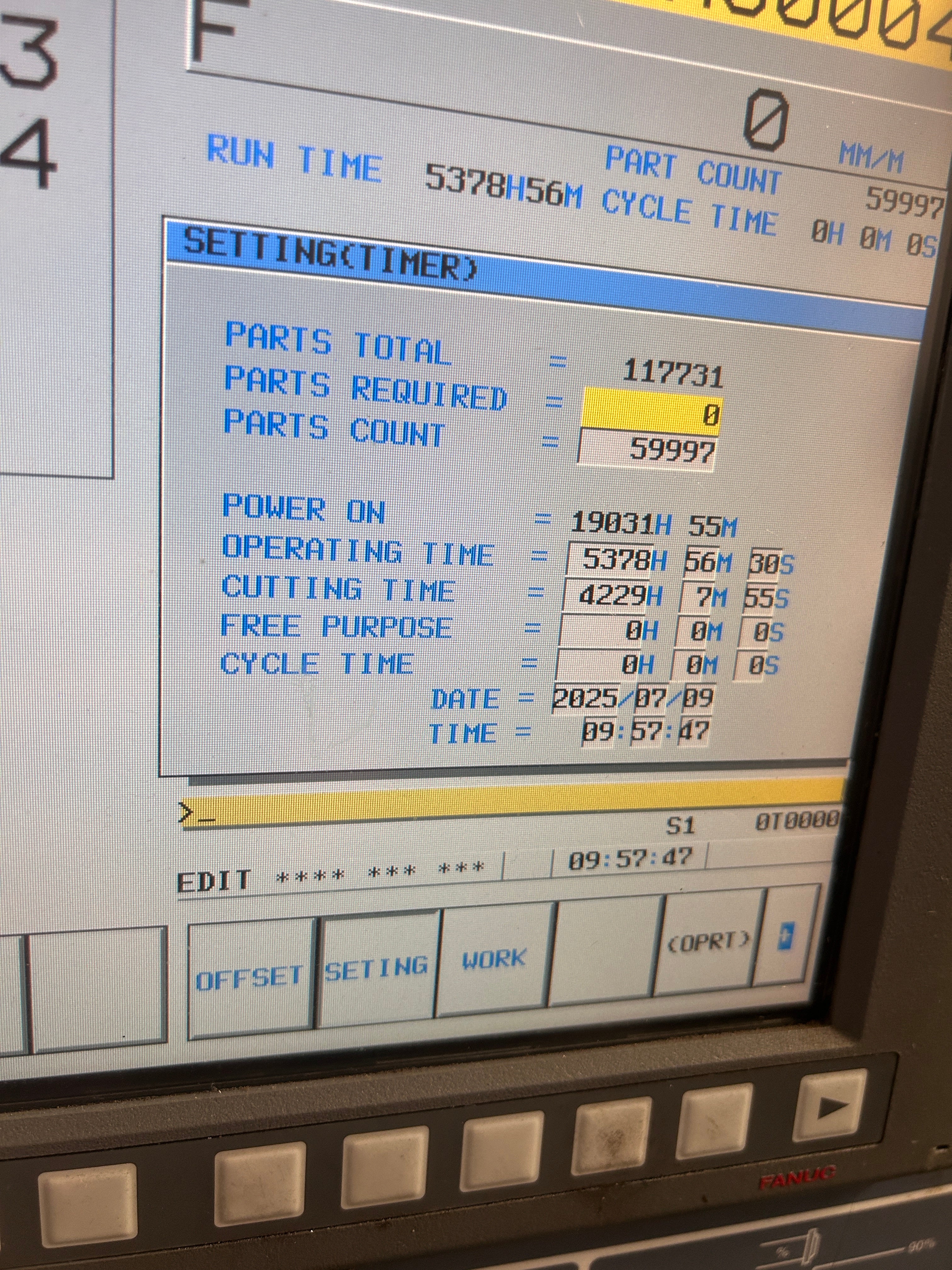

control: FANUC Oi‑TC
