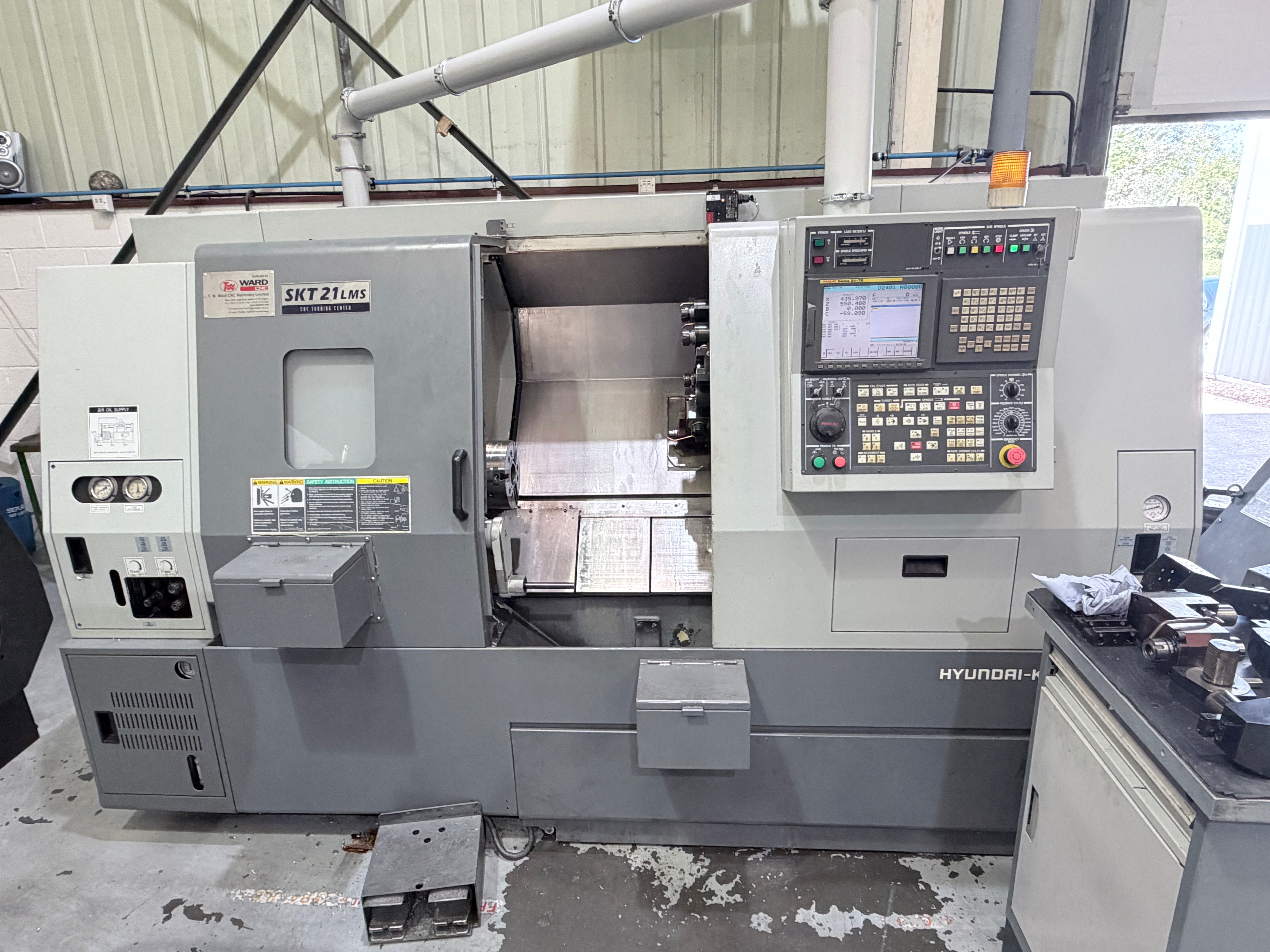

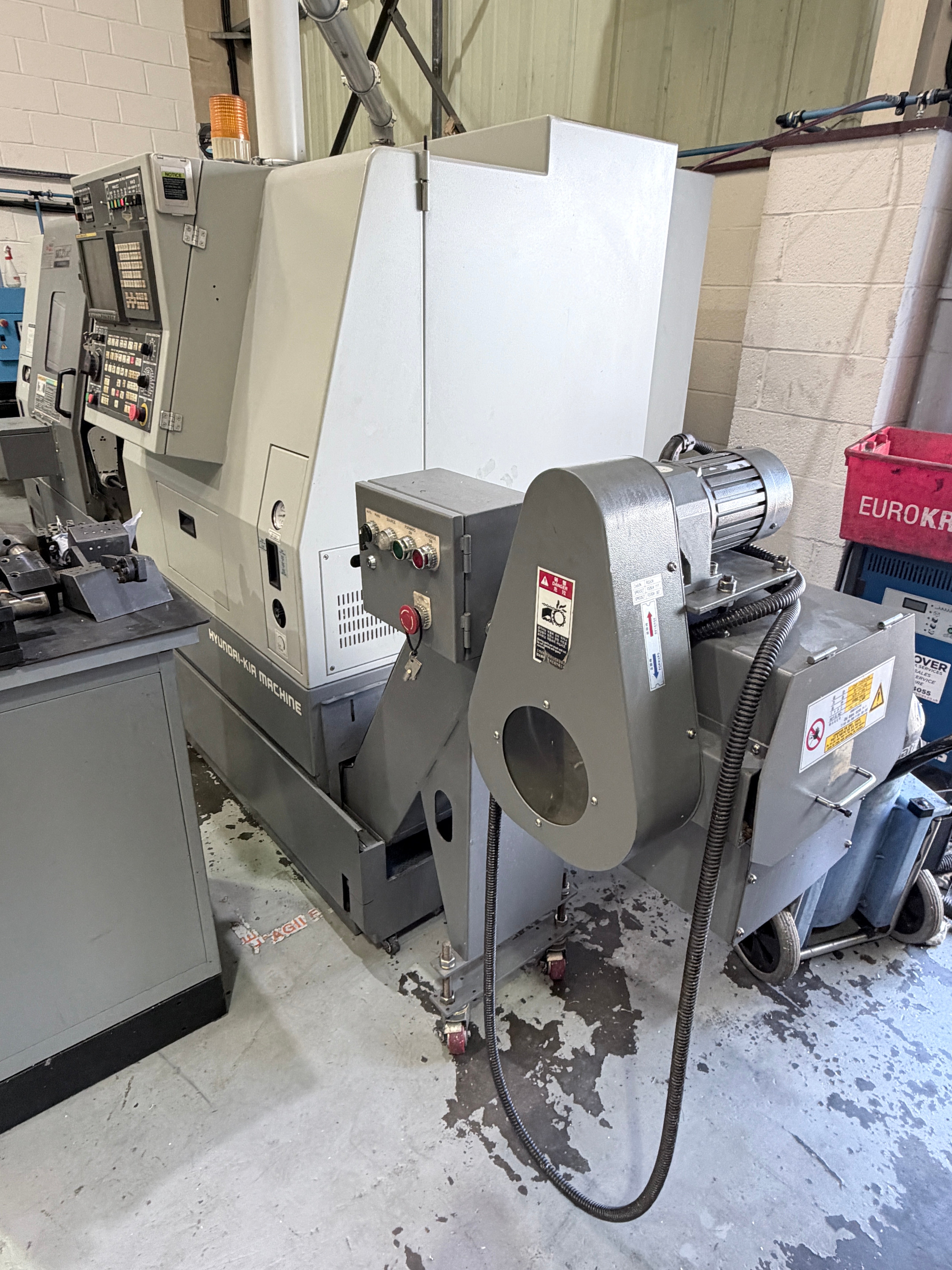

2010 Hyundai Kia SKT-21LMS CNC Lathe

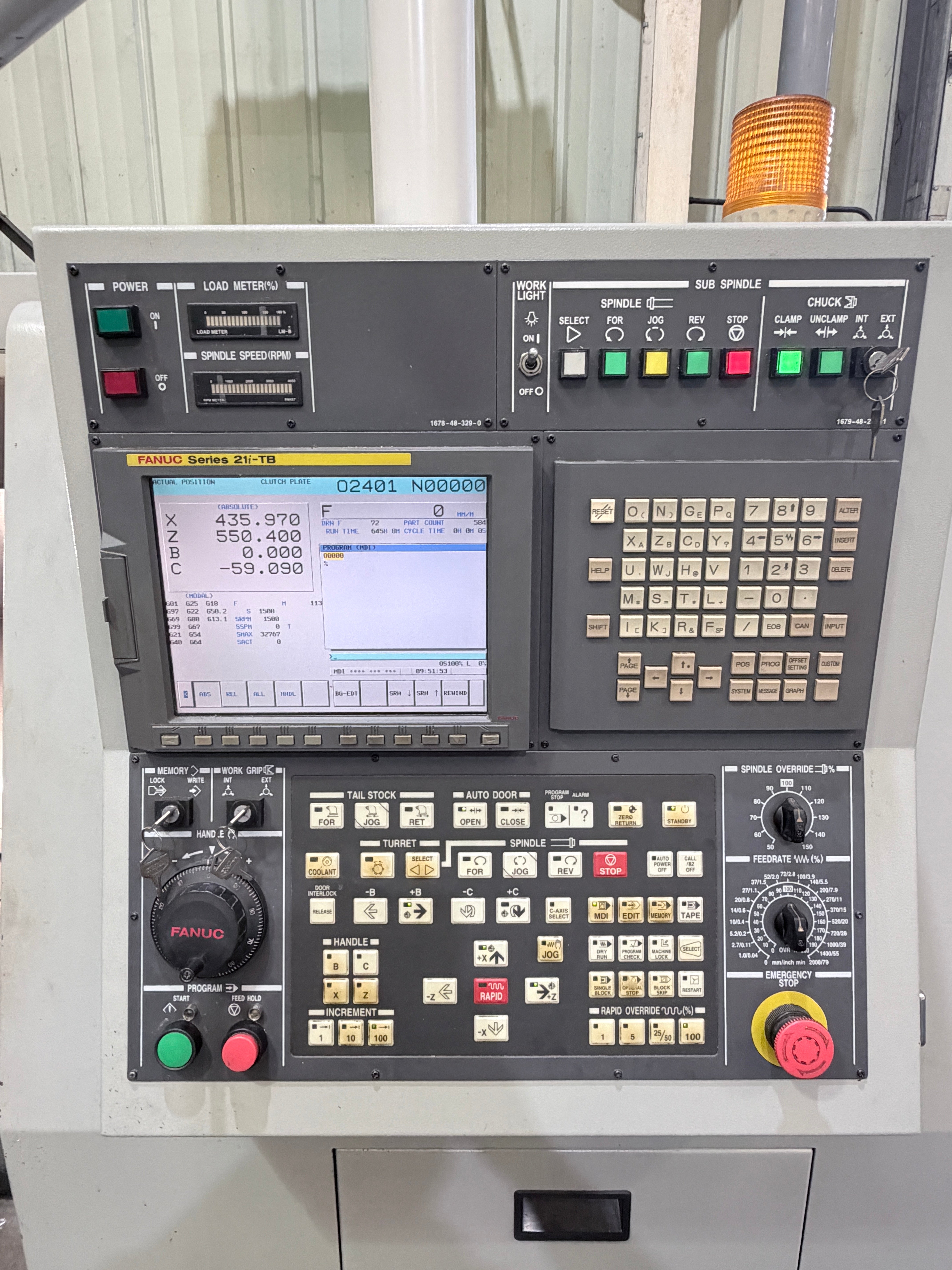

CNC Control Fanuc 0i-TC
# Axis 4
Swing 551mm
Swing Over Cross Slide 351mm
Turning Diameter 254mm
Center Distance 530mm
Chuck Size 203mm
Bar Capacity 65mm
X Axis Travel 211mm
Z Axis Travel 550mm
B Axis Travel (Sub Spindle) 749mm
C Axis Index 0.001°
Rapid Traverse (X/Z) 1,417 ipm
Spindle Nose A2-8
Spindle Speed 4,000 rpm
Main Motor 20 hp

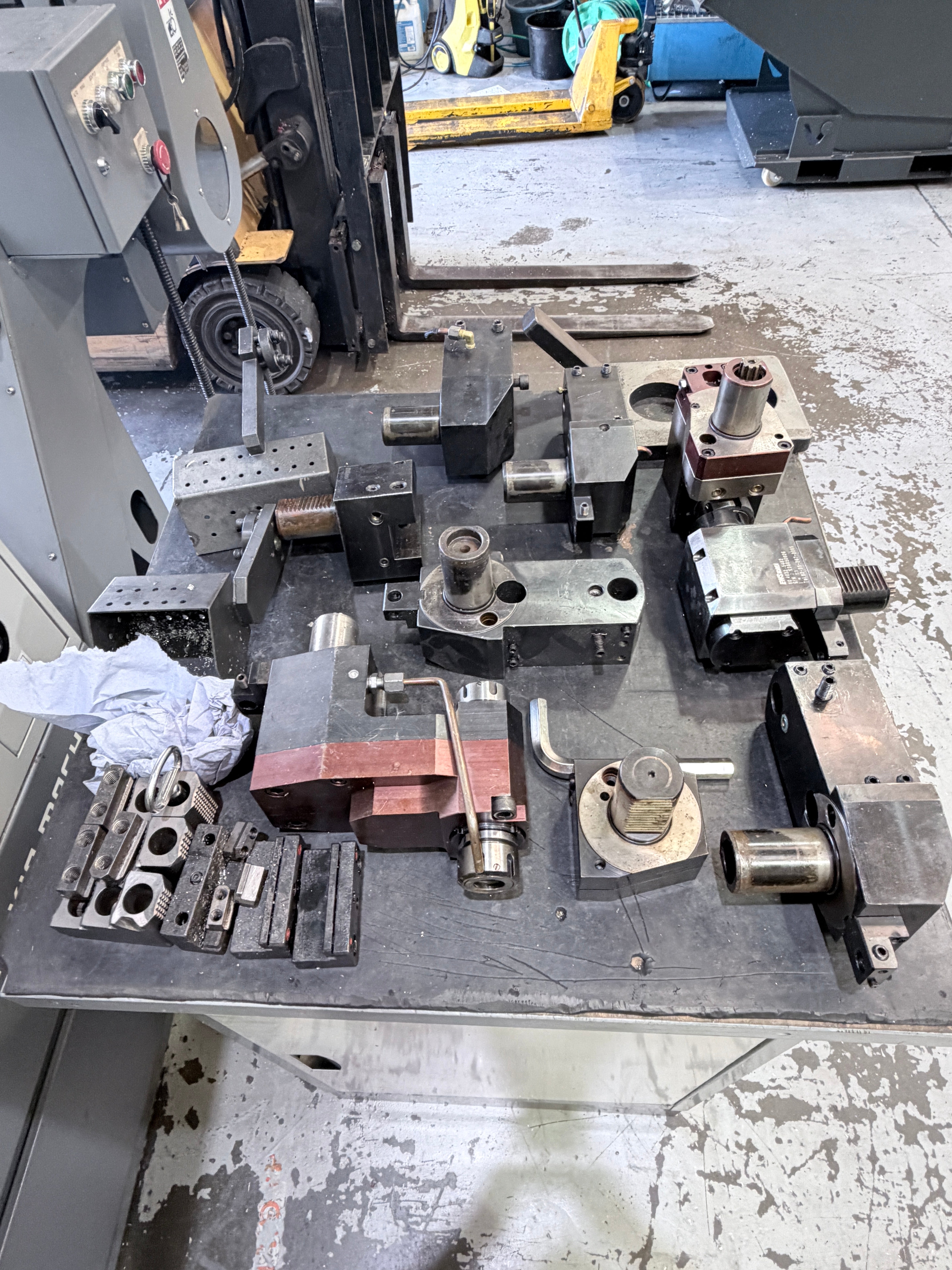

Live Tooling yes
Live Tooling Speed 4,000 rpm
Live Tooling Motor 5 hp
Tailstock no
Y Axis no

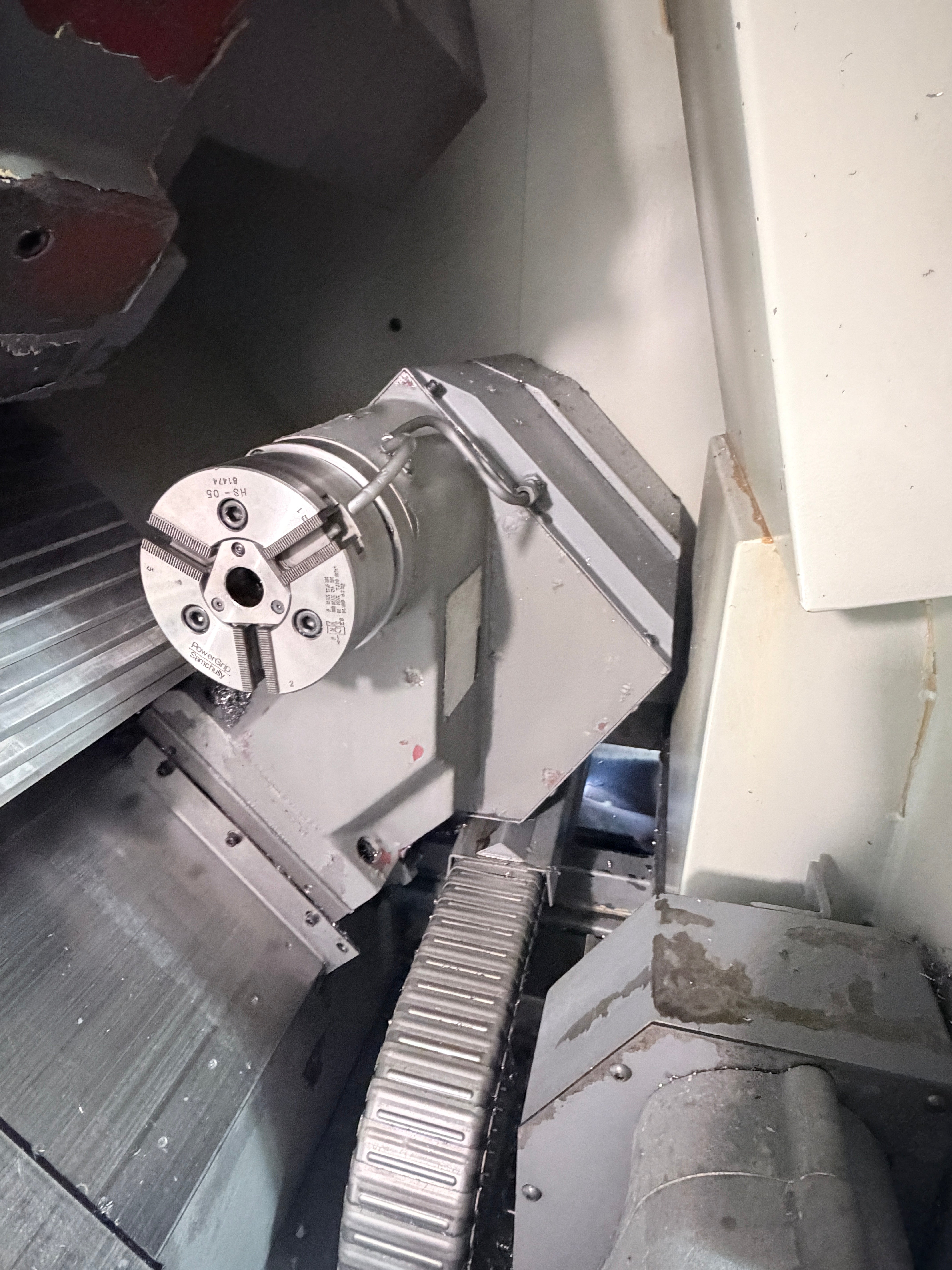

Sub Spindle yes
Sub Spindle Chuck 6
Sub Spindle Speed 4,000 rpm
Sub Spindle Motor (HP) 5 hp

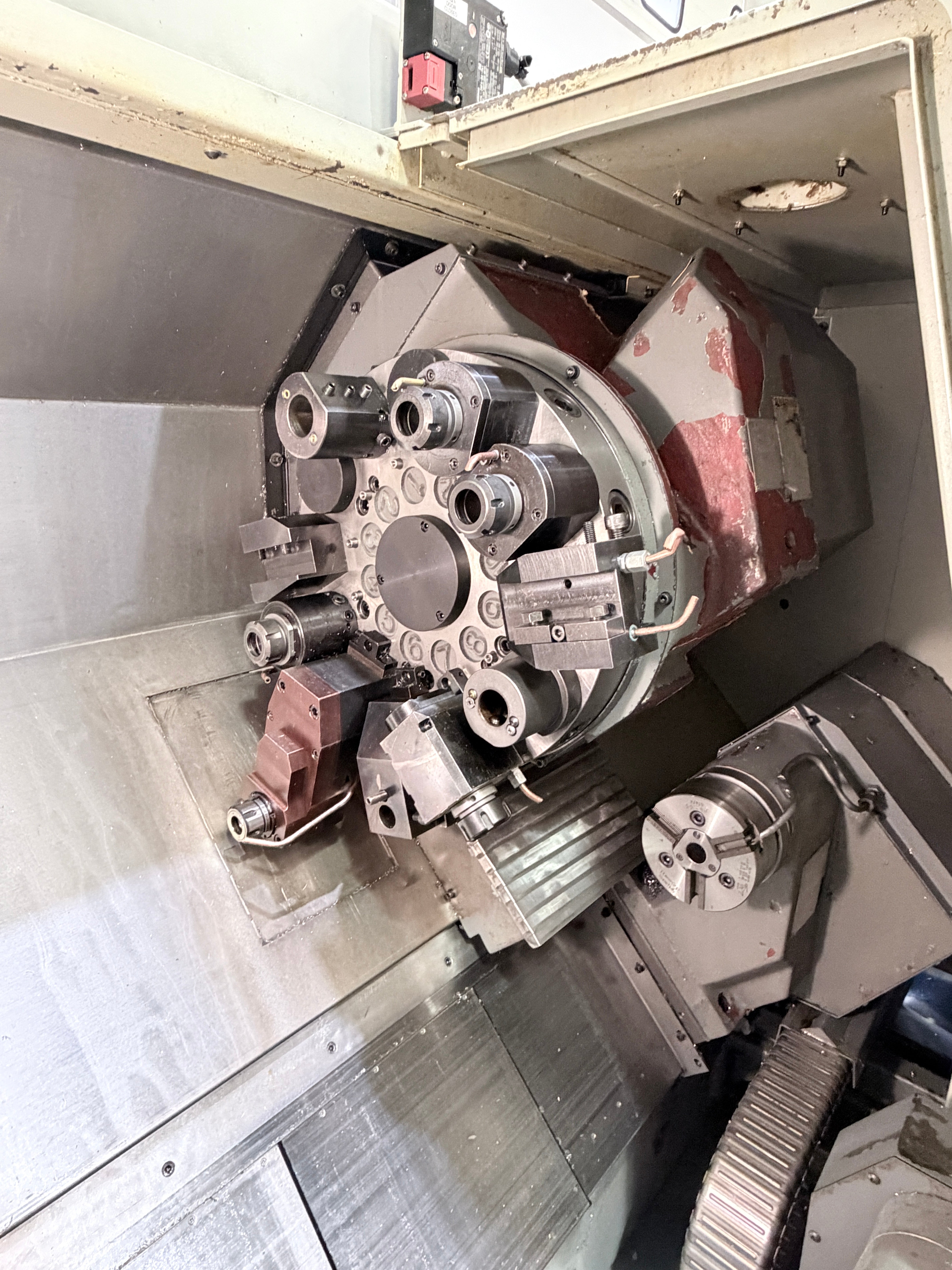

Turret Capacity 12 stations
Machine Dimensions 3,175mm x 1,651mm x 1,880mm
Machine Weight 4,535 kg
