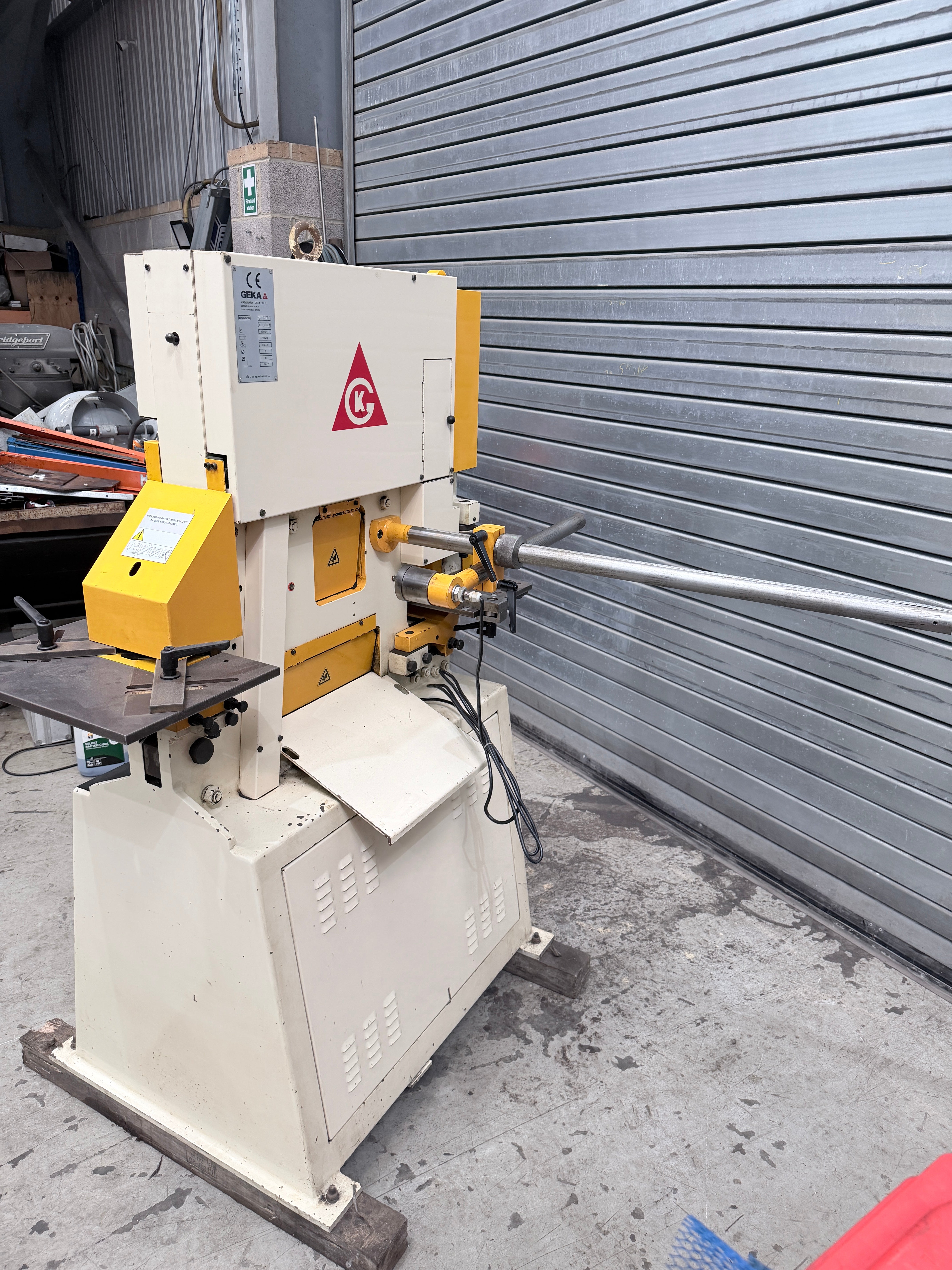

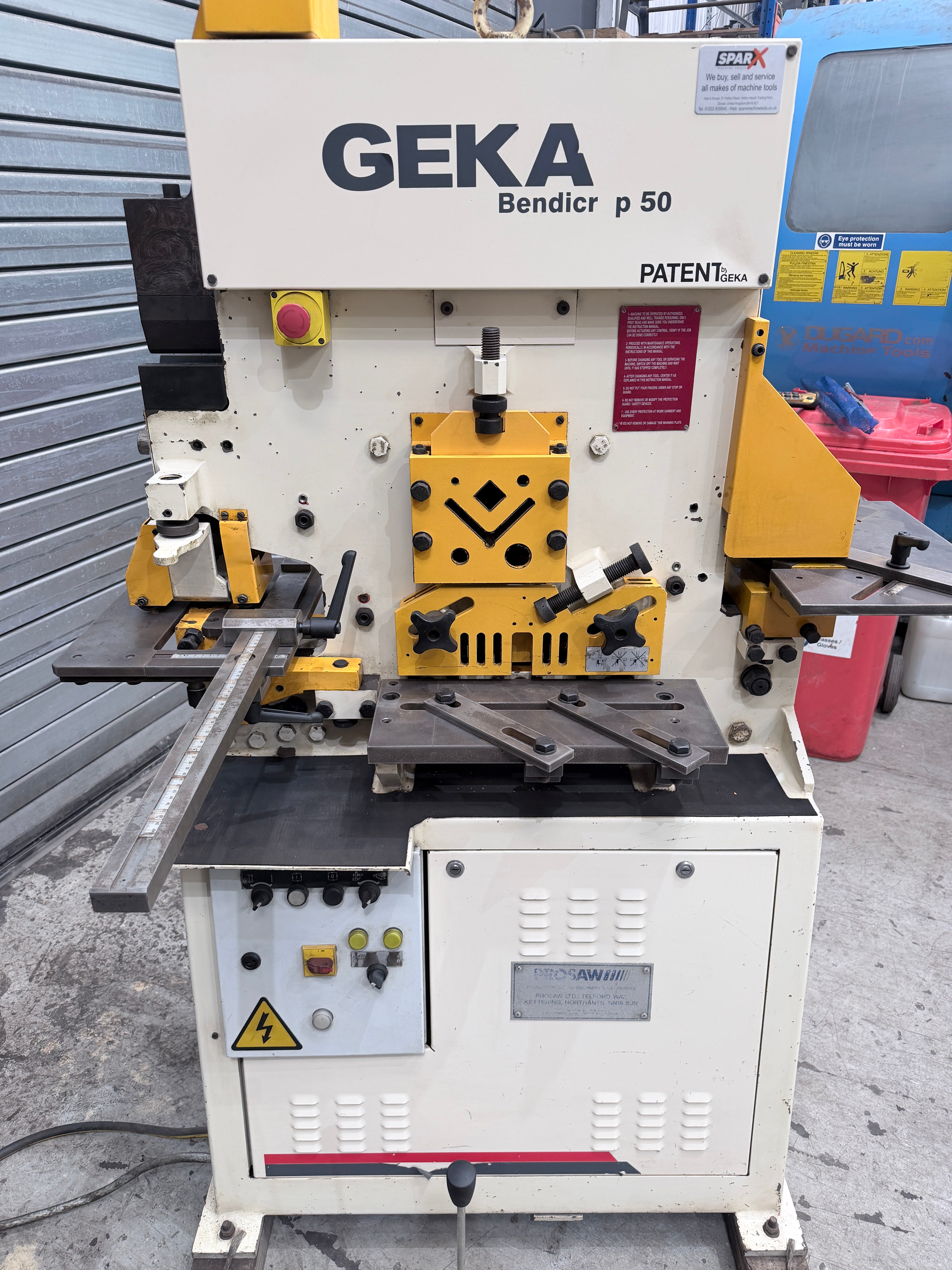

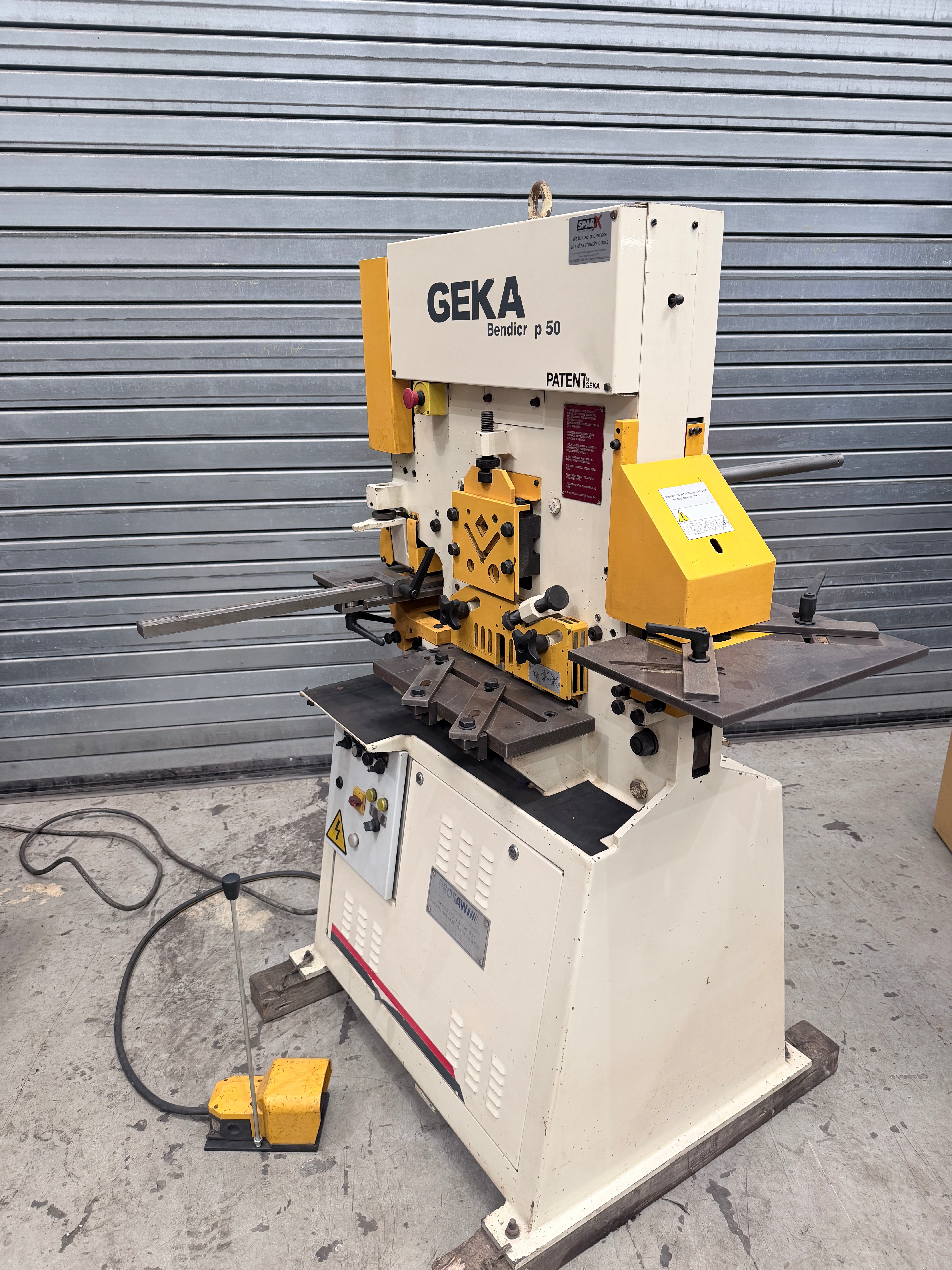

2021 GEKA BendiCrop 50 Steel Worker
Exclusive and UNIQUE from Geka, the GEKA Bendicrop 50 is a single cylinder 50 tonne steelworker with 6 workstations. This hydraulic ironworker machine is fitted with a bending station and a system to avoid distortions when cutting plates.
Punching
Notching
Shear for flat bars
Angle cutting
Cutting of round and square bars
Fitted with an anti torque system to reduce deformation when shearing flat bars.

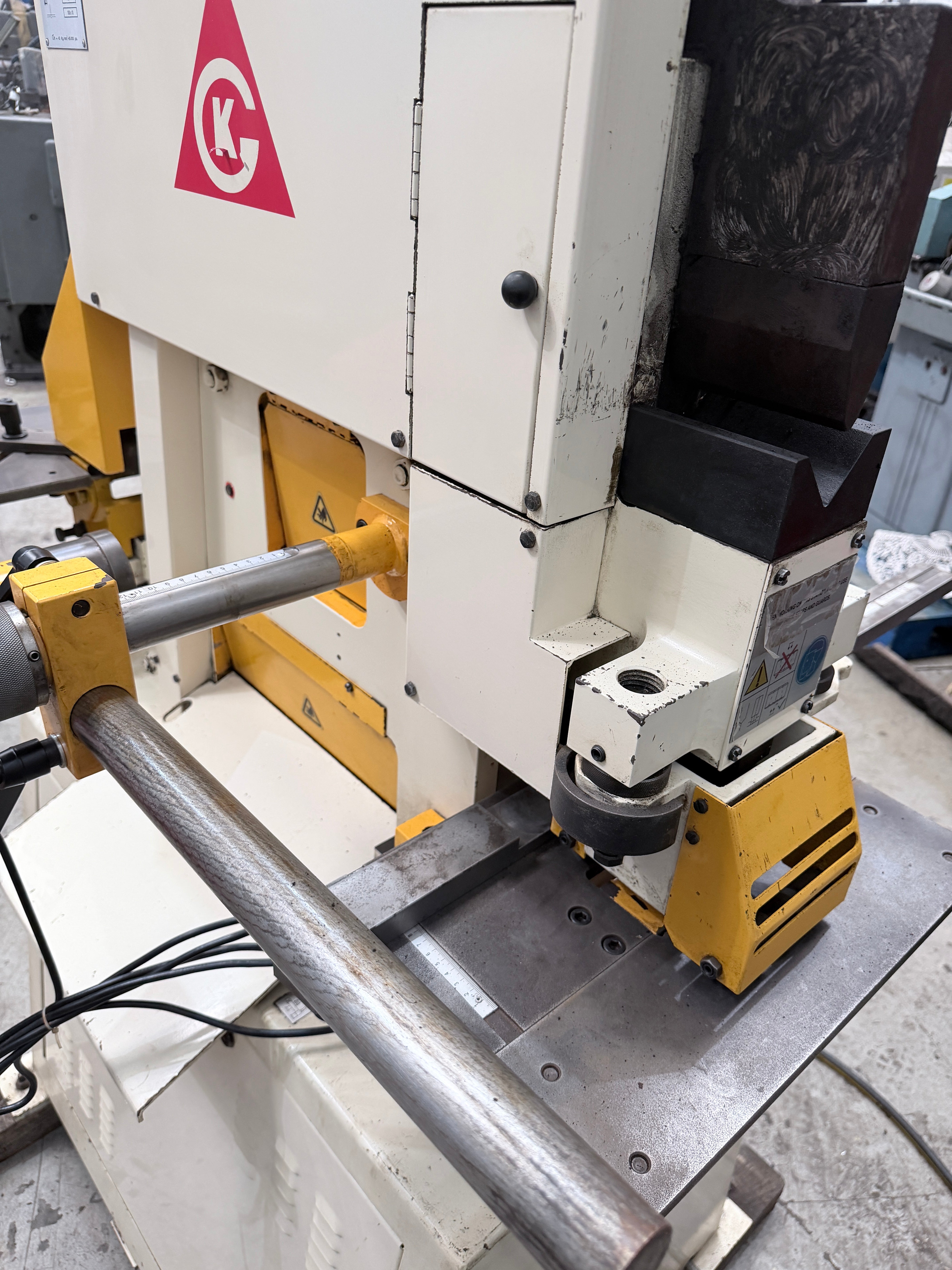

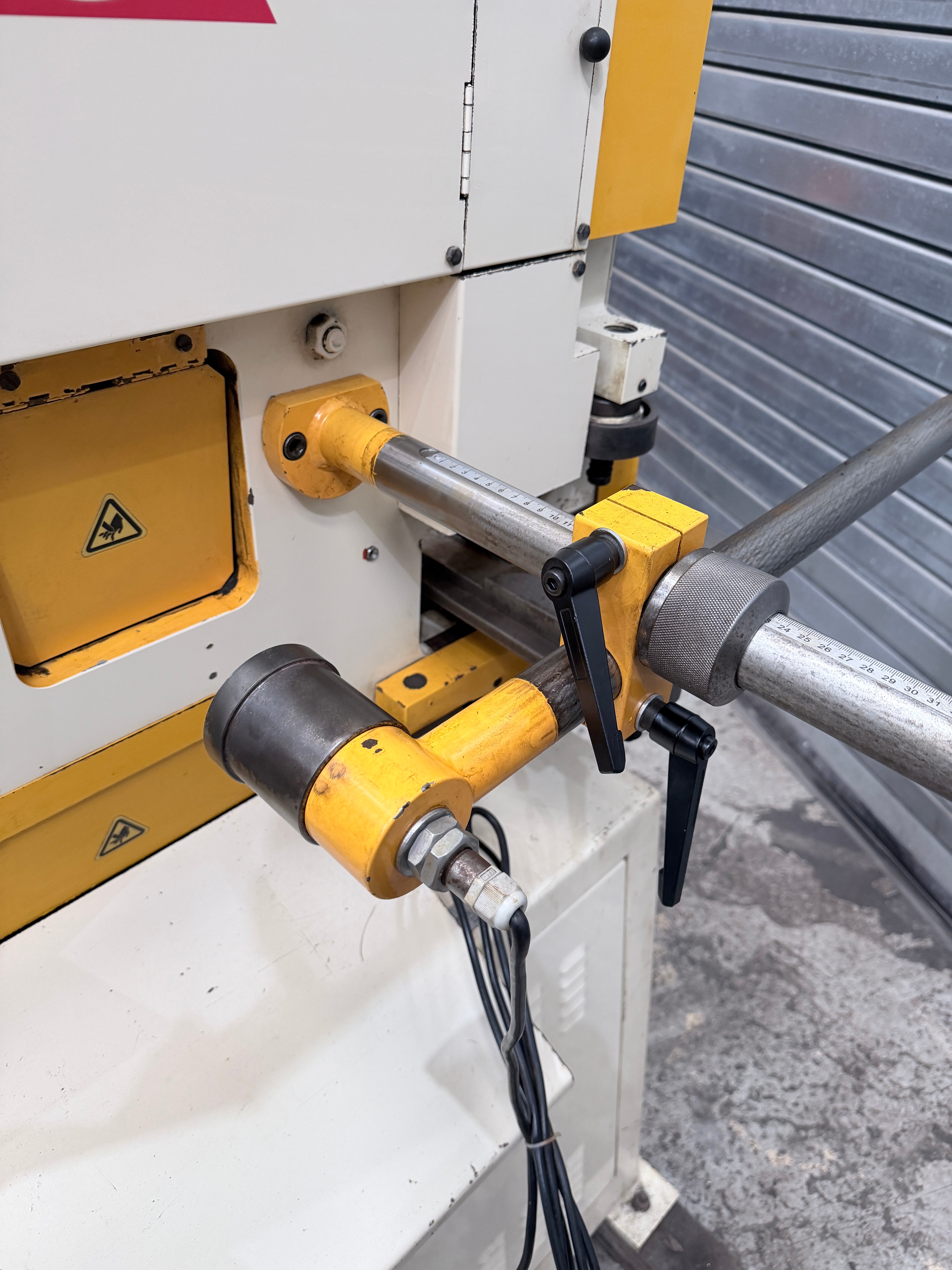

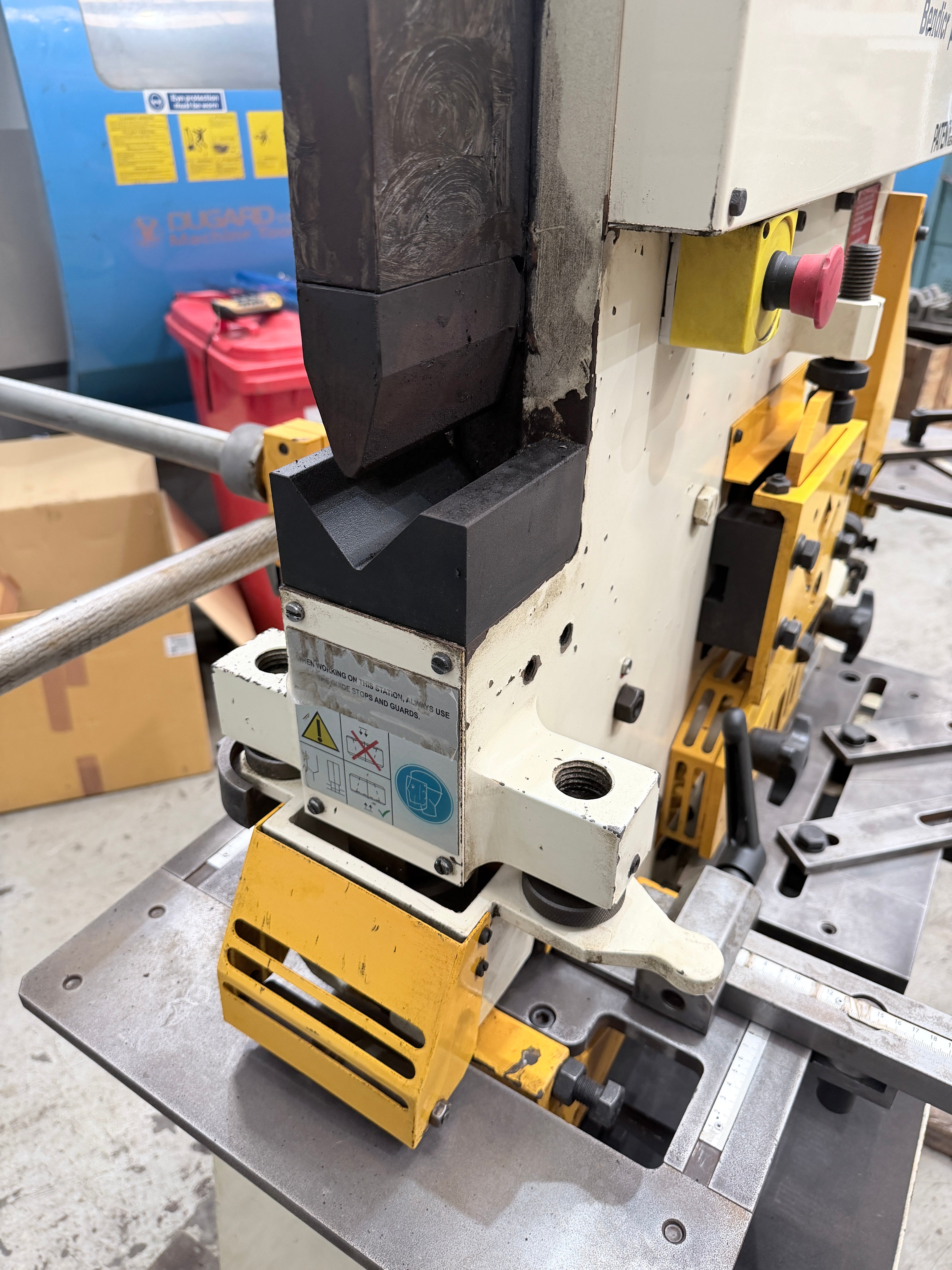

The BENDICROP model is fitted with a touch and cut length stop and is delivered with two V-shaped bending dies of 40mm and 70mm width.
Permanently fitted bending station complying with CE standards.

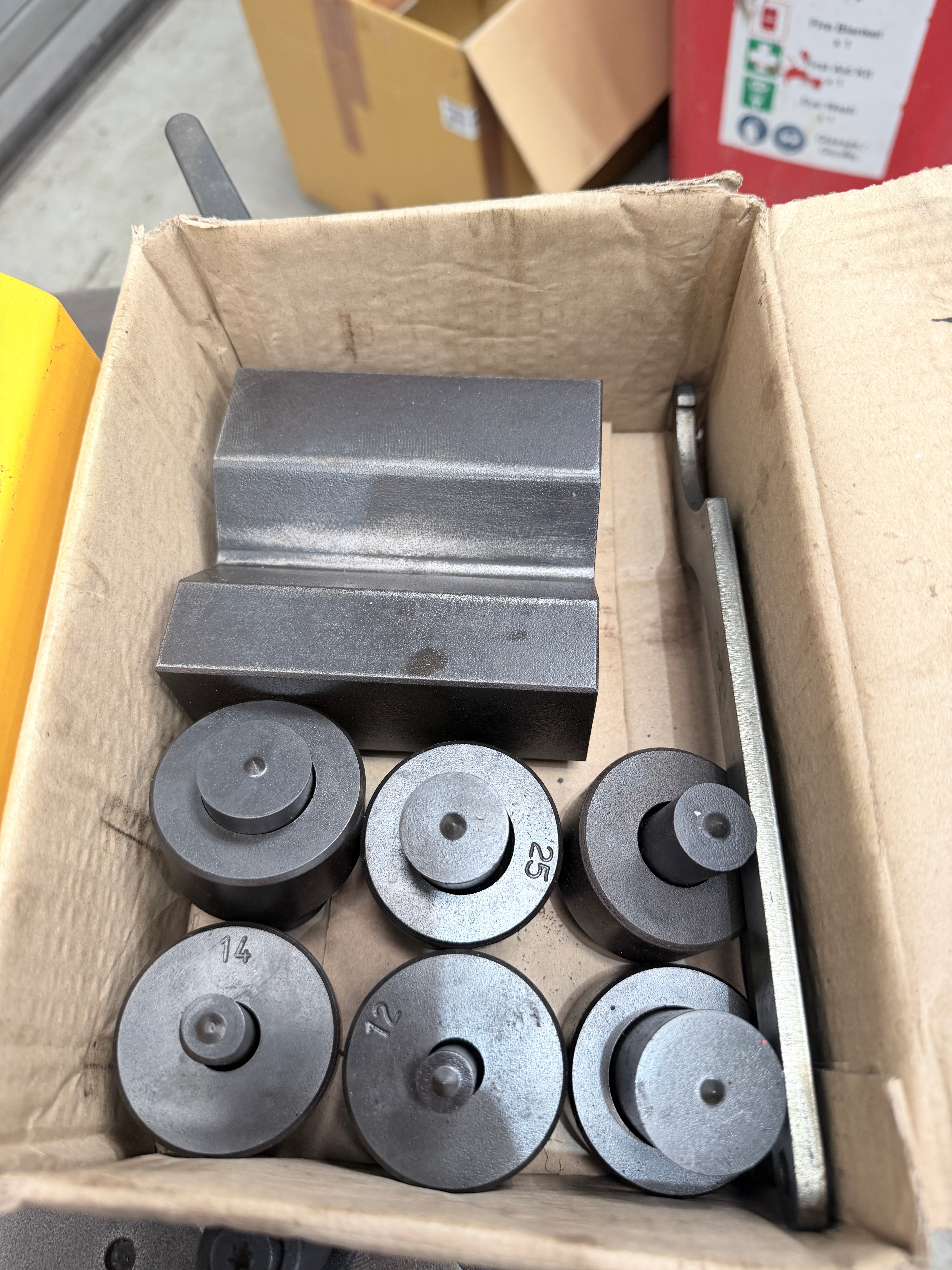

- Goose neck die-holder for punching of angle and channel sections on flanges and web.
- Quick tool change
- Angle shearing without loss of material.
- Flat bar and plate shearing system with minimum deformation & mitre shearing up to 45º.

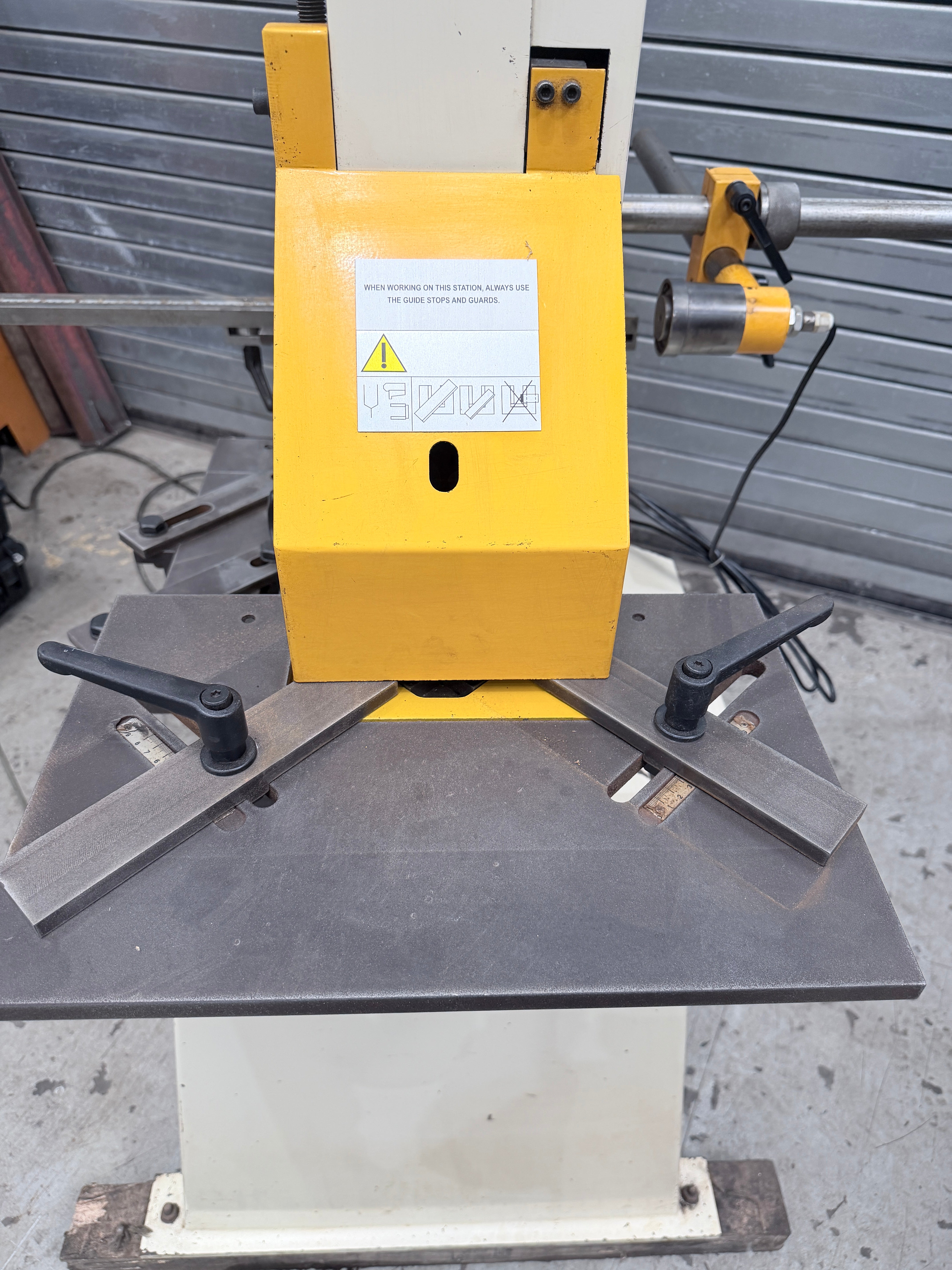

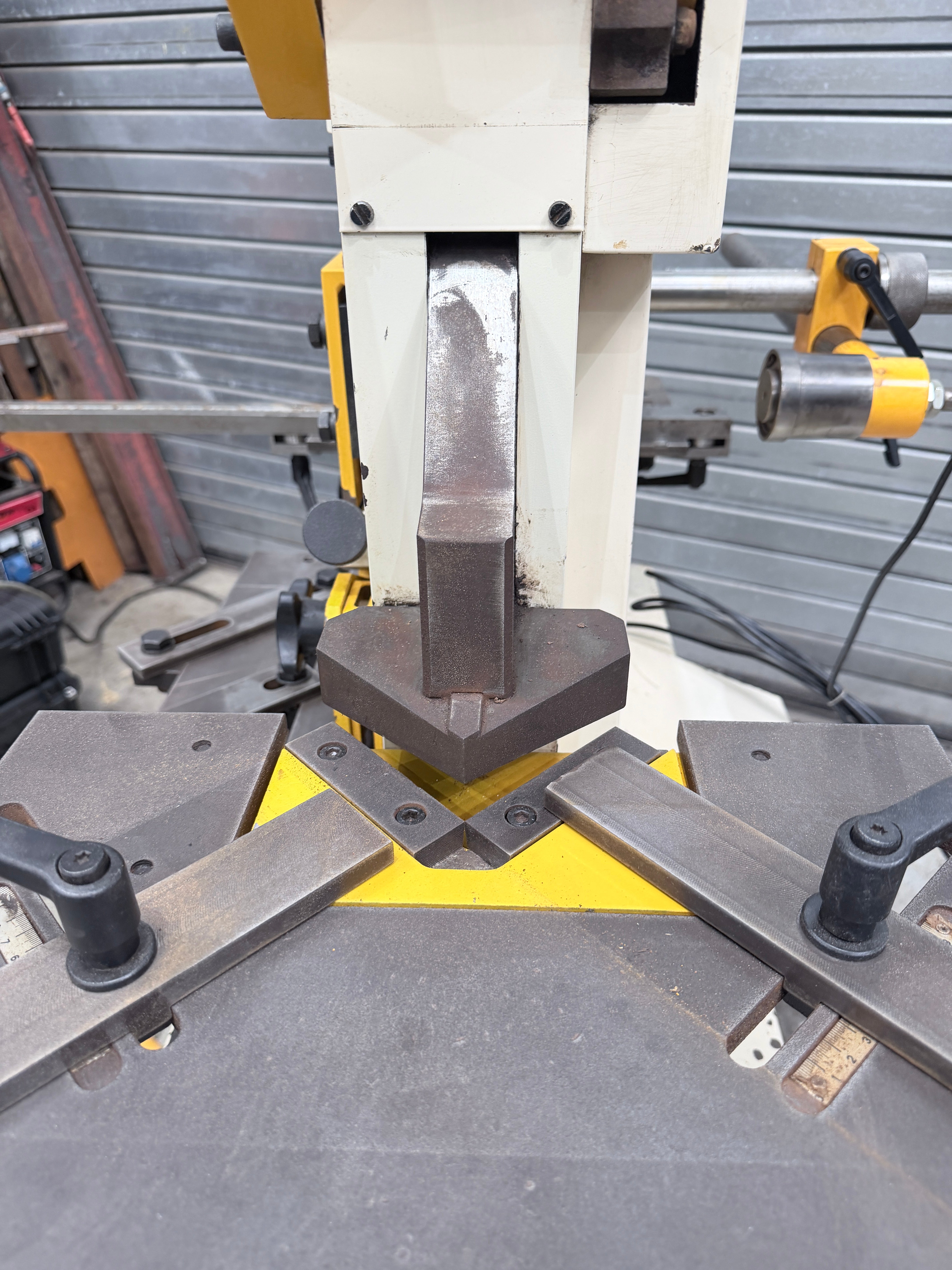

- Rectangular (OR triangular) notching with table.
- Steel Flatbarshear 350 x 10mm, 350 x 15mm (5º)
- Punching 31 through 12mm
- Steel Rectangular Notching 90 x 42 x 10mm
- Steel Triangular Notching 100 x 100 x 10mm
- Steel Angle Shear 90 80 x 80 x 8mm
- Steel Solid Bar 35mm round, 30mm square
- Punching Power 500kN
- Tonnage 50 tonnes
- Throat Capacity 177mm
- Table Height 973mm
- Motor 3kW
- Weight 1000 kgs
Pairs well with
Specifications
| Manufacturer | Geka |
| Model | |
| Condition | Used |
